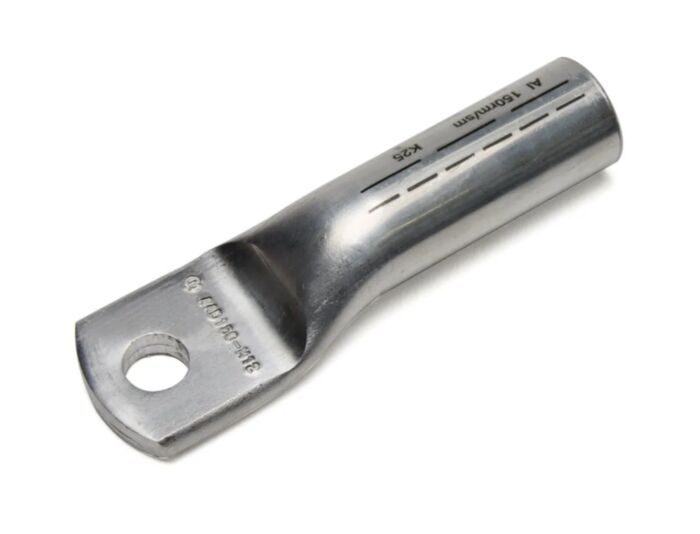

8016816 Cembre AAD50-M10 ALUMINIUM TERMINAL

Cembre - Making the right connections (AAD50-M10): Industrial-grade performance for demanding applications

Terminals type AAD..-M.. are made from Aluminium tube of a purity equal or greater than 99,5%. They are suitable for Aluminium conductors according to DIN EN 50182, up to 10 kV. All terminals are filled with a special grease that avoids Aluminium oxidation after crimping thereby assuring an optimal compression. Barrel is closed with a cap for storage and transport. Bright surface finish Typical uses include control panels, switchgear, machinery and general electrical installations.

Key Features

• Terminals type AAD..-M
• are made from Aluminium tube of a purity equal or greater than 99,5%
• They are suitable for Aluminium conductors according to DIN EN 50182, up to 10 kV
• All terminals are filled with a special grease that avoids Aluminium oxidation after crimping thereby assuring an optimal compression
• Barrel is closed with a cap for storage and transport

Technical Specifications

• tipo: M10
• Screw diameter: 10.5
• ØD [mm]: 25
• B [mm]: 11
• N [mm]: 18
• M [mm]: 72
• I [mm]: 83
• L [mm]: 42
• A [mm]: 9.8
• Ø [mm]: 47
• Cable stripping length [mm]: 16
• Ø1 [mm]: 30
• Unit in minimal packaging [pce]: 60
• Unit in standard packaging [pce]: Yes

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

Frequently Asked Questions

• What is this product used for? Cembre - Making the right connections is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
