7GN6353U - 3P 3 POS CHANGE OVER SWITCH GN6353U FRON
MPN: 7GN6353U
Special Price
£124.24
£103.53
Regular Price
£207.06
Why Choose the 7GN6353U?

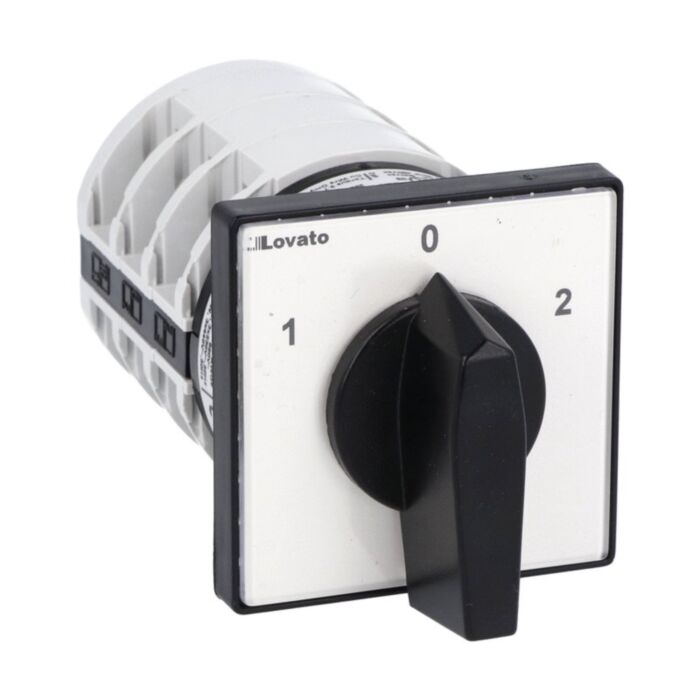

Designed for reliable panel control, the Lovato 7GN6353U is a rotary cam changeover switch from the 7GN series. This 3-pole, 63A unit is built for U-form front mounting with a black handle and 65x65 mm front plate. As a compact changeover switch, it integrates the 7GN round-shaped contact block for a consistent footprint across control assemblies and straightforward installation in industrial control panels.
Switching diagram 53 enables 3-pole changeover for two-speed motor starting with separate windings, supporting typical UK industrial machinery. The device offers a rated impulse withstand voltage of 6 kV and a frontal IP40 rating, operating from -25 to +55 °C. It meets IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14, ensuring dependable performance in compliant control circuits.
Key Benefits
- 3-pole changeover per Diagram 53 for two-speed motors with separate windings.
- 63 A conventional free air thermal current for robust control applications.
- Front mounting with black handle simplifies panel integration and operation.
- Compact 65x65 mm front plate optimises space on crowded control panels.
- 6 kV impulse withstand improves protection against transient overvoltages.
- IP40 frontal rating for basic ingress protection at the panel interface.
- Conformity with IEC/EN/BS 60947 series supports compliance in industrial builds.
Technical Specification
- Product type designation: 7GN63
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN series rotary cam changeover switch unit (3-pole, 63A)
- 65x65 mm front plate with black handle
- Front mounting components (as supplied by manufacturer)
- Installation leaflet
Applications
- Two-speed motor starting circuits with separate windings (per Diagram 53)
- Industrial control panels requiring reliable 3-pole changeover
- HVAC fans and pump systems using dual-speed motors
- Machine tools and process equipment needing controlled changeover
Frequently Asked Questions
What is the function and configuration of the 7GN6353U?
It is a rotary cam changeover switch with 3 poles and switching diagram 53 for two-speed motor starting with separate windings.
What are the current and impulse withstand ratings?
The conventional free air thermal current Ith is 63 A, and the rated impulse withstand voltage Uimp is 6 kV.
How is it mounted and what is the front plate size?
It is U-form front mounting with a black handle and a 65x65 mm front plate.
What are the environmental and ingress protection ratings?
It operates from -25 to +55 °C and provides a frontal IP40 degree of protection.
Which standards does this changeover switch conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before work and operate within stated ratings, temperature range, and frontal IP40 protection.
| Manufacturer Part Number | 7GN6353U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003903 |
