7GN4091U - SWITCH 2P GN4091U 2POS FRONT MOUNT 65X65

Why Choose the 7GN4091U?

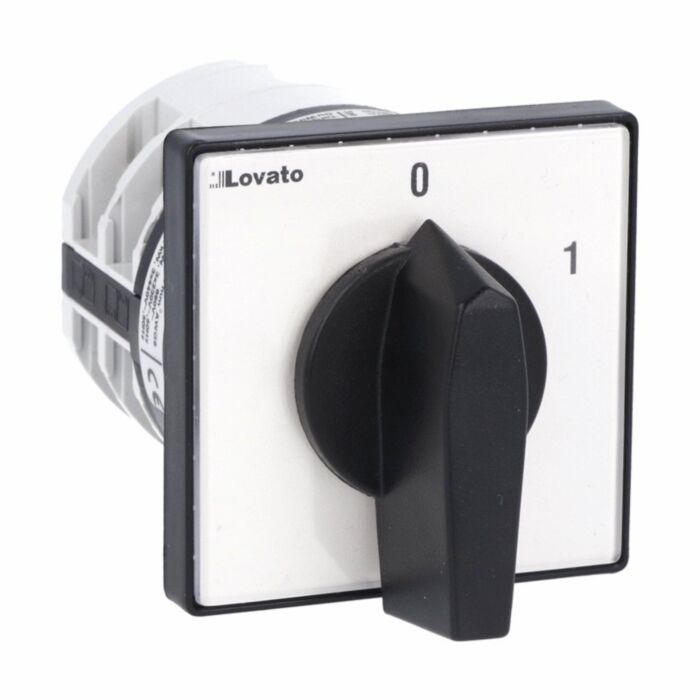

The Lovato 7GN4091U rotary cam ON/OFF switch delivers reliable two-pole control for industrial panels. With a 40 A conventional free air thermal current (Ith), front mounting (U) and a black handle on a 65x65 mm plate, it suits compact layouts. The 7GN round-shaped contact block design and switching diagram 91 ensure straightforward ON/OFF functionality.

Rated impulse withstand voltage is 6 kV and the frontal IP degree is IP40, supporting dependable operation in protected enclosures. Operating from -25 to +55 °C with storage to -40 to +70 °C, it meets IEC/EN/BS 60947 standards plus UL and CSA listings. Ideal where a clear, durable ON/OFF switch is required in UK control applications.

Key Benefits

• 40 A Ith supports robust two-pole ON/OFF switching.
• Front mounting (U) with black handle for easy operator access.
• Compact 65x65 mm front plate optimises panel space.
• IP40 frontal protection for use in protected enclosures.
• 6 kV impulse withstand enhances transient resilience.
• Wide operating temperature range suits varied environments.
• Compliant with IEC/EN/BS, UL and CSA standards.

Technical Specification

• Product type designation: 7GN40
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP40

What’s Included

• Lovato 7GN4091U rotary cam ON/OFF switch
• 65x65 mm front plate with black handle (front mounting)
• Manufacturer datasheet and documentation

Applications

• Industrial control panels requiring two-pole ON/OFF switching
• OEM machinery control boxes and automation cabinets
• General power circuits within protected enclosures (IP40 frontal)
• Building services and maintenance switchgear panels

Safety note: Install and commission only by qualified personnel. Use within the stated IP40 frontal protection and temperature ranges, and follow applicable IEC/EN/BS, UL and CSA standards.
