7GN4053U - 3 POS. CHANGEOVER SWITCH GN4053U
MPN: 7GN4053U
Special Price
£80.83
£67.36
Regular Price
£134.71
Why Choose the 7GN4053U?

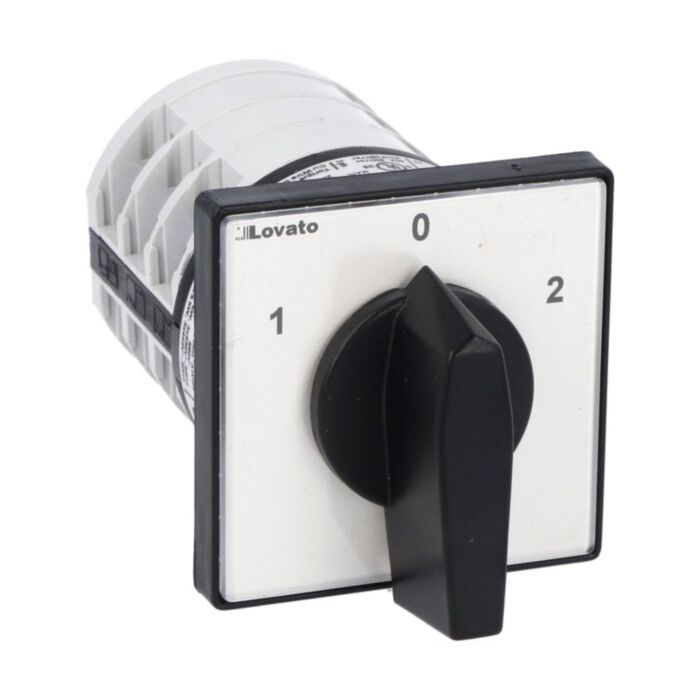

Lovato’s 7GN4053U is a rotary cam changeover switch from the 7GN series, designed for reliable three‑pole switching at 40 A Ith. The U mounting form enables front mounting with a black handle and a compact 65×65 mm front plate. With IP40 frontal protection, 6 kV Uimp and an operating range of −25 to +55 °C, it delivers robust performance for front‑mounted panel applications.
Switching diagram 53 supports changeover control of two‑speed motors with separate windings across three poles. The 7GN round‑shaped contact block suits compact, front‑mounted panels. Conformity to IEC/EN/BS 60947‑1, 60947‑3 and 60947‑5‑1, plus UL60947‑4‑1 and CSA C22.2 n° 14, supports specification to recognised standards. A listed Sustainability certification complements its specification.
Key Benefits
- Three‑pole changeover for two‑speed motors with separate windings (diagram 53).
- 40 A Ith rating for thermal current handling.
- U front mounting with black handle for panel installation.
- 65×65 mm front plate supports compact operator interfaces.
- IP40 frontal protection for use in enclosed control panels.
- 6 kV rated impulse withstand voltage (Uimp).
- Operates within −25 to +55 °C ambient range.
- Conforms to IEC/EN/BS, UL and CSA standards.
Technical Specification
- Product type designation: 7GN40
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN4053U changeover switch
- 65x65 mm front plate with black handle (U mounting form)
- Manufacturer data sheet (downloadable)
Applications
- Two-speed motor starting with separate windings (diagram 53)
- Industrial control panels requiring 3-pole changeover switching
- Front-mounted operator interfaces on machinery and equipment
- Electrical cabinets with IP40 frontal protection requirements
Frequently Asked Questions
What is the switching function of the 7GN4053U?
It follows diagram 53: a 3‑pole changeover for two‑speed motor starting with separate windings.
What current rating does this changeover switch support?
The IEC conventional free air thermal current (Ith) is 40 A.
How is it mounted and what is supplied on the front?
Mounting form U denotes front mounting with a black handle and a 65x65 mm front plate.
What are the protection and impulse withstand ratings?
The frontal degree of protection is IP40 and the rated impulse withstand voltage (Uimp) is 6 kV.
Which standards does it conform to and what is the operating range?
It conforms to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14, and operates from -25 to +55 °C.
Safety note: Install and commission only by qualified personnel. Isolate all power sources before work and follow IEC/EN/BS 60947 and local regulations to ensure safe operation.
| Manufacturer Part Number | 7GN4053U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003514 |
