7GN4010U - 3P SWITCH GN4010U 2 POSITION FRONT MONT
MPN: 7GN4010U
Special Price
£53.35
£44.46
Regular Price
£88.92
Why Choose the 7GN4010U?

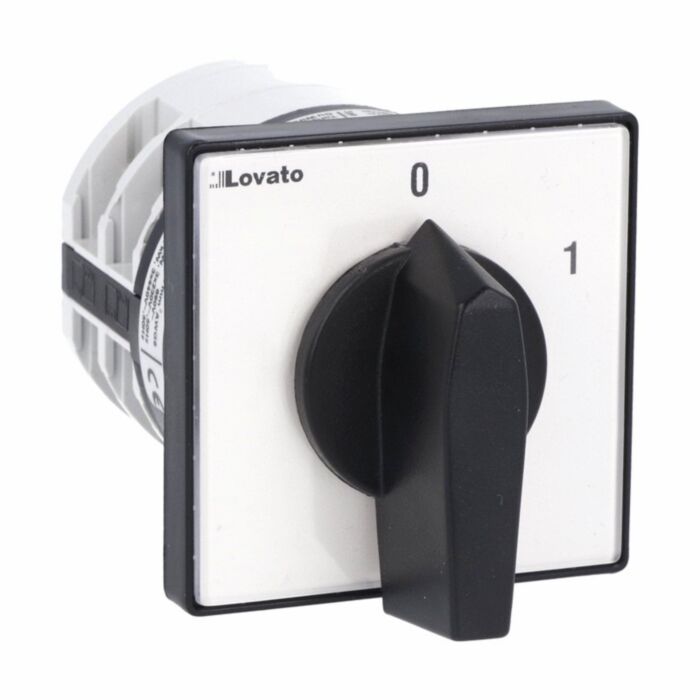

The Lovato 7GN4010U rotary cam ON/OFF switch delivers dependable 3‑pole switching at 40 A Ith for control and distribution panels. Designed for U front mounting, it features a black handle and a 65X65mm front plate for a tidy, compact operator interface. Part of the 7GN series with round-shaped contact block, it uses switching diagram 10 for straightforward ON/OFF control.
Engineered for harsh conditions, this 7GN40 designation device offers a rated impulse withstand voltage of 6 kV and IP40 frontal protection. It operates from -25 to +55 °C and stores from -40 to +70 °C. Conformity with IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL and CSA references, supports reliable integration in UK industrial applications.
Key Benefits
- 3-pole ON/OFF switching with diagram 10 for clear isolation
- 40 A Ith rating for robust conventional thermal performance
- U front mounting with black handle simplifies panel assembly
- 65X65mm front plate provides compact, consistent operator sizing
- IP40 frontal protection guards against solid object ingress
- 6 kV impulse withstand enhances insulation coordination
- Wide -25 to +55 °C operating temperature range
Technical Specification
- Product type designation: 7GN40
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN4010U rotary cam ON/OFF switch
- 65X65mm front plate with black handle (pre-mounted)
- Manufacturer datasheet (available online)
Applications
- ON/OFF switching of 3-pole circuits up to 40 A Ith
- Control and distribution panels requiring front-mounted operators
- Equipment interfaces needing IP40 frontal protection
- General industrial switching within -25 to +55 °C environments
Frequently Asked Questions
What is the switching diagram for this model?
It uses diagram 10, an ON/OFF switch with 3 poles.
What current rating does it support?
The IEC conventional free air thermal current (Ith) is 40 A.
Is it suitable for front mounting?
Yes. Mounting form U indicates front mounting with a black handle.
What environmental ratings does it have?
Operating range is -25 to +55 °C, storage -40 to +70 °C, with IP40 frontal protection.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and service only by qualified personnel. Isolate all power before work, observe IP40 frontal limits and specified temperature ranges, and follow applicable IEC/EN 60947 guidelines and manufacturer instructions.
| Manufacturer Part Number | 7GN4010U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002609 |
