7GN4010O98 - 3P 2POS SWITCH GN4010O98 REAR MNTG DOOR
MPN: 7GN4010O98
Special Price
£69.02
£57.52
Regular Price
£115.03
Why Choose the 7GN4010O98?

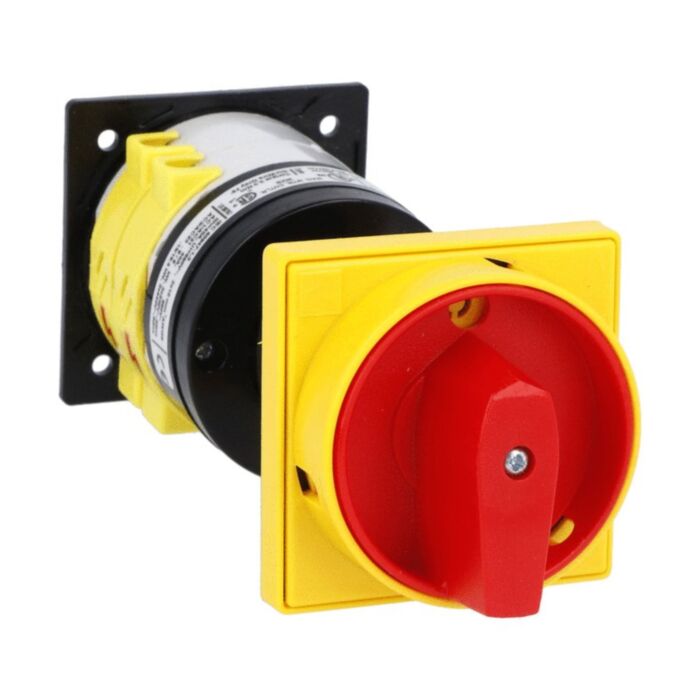

This Lovato rotary cam ON/OFF switch, SKU 7GN4010O98, delivers dependable three‑pole switching for demanding control duties. Part of the 7GN series with a round-shaped contact block, it provides 40 A IEC conventional free air thermal current (Ith) and switching diagram 10. Designed for rear mounting (O98), it features a red/yellow handle padlockable in the 0 position, door coupling and protection covers.
Engineered for reliable panel integration, the unit presents a 65x65 mm front plate and IP40 frontal protection. It withstands 6 kV impulse voltage and operates from −25 to +55 °C, with storage down to −40 °C and up to +70 °C. Compliance with IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL and CSA standards, supports global specification.
Key Benefits
- 3-pole ON/OFF function with switching diagram 10 for clear control.
- 40 A IEC conventional free air thermal current (Ith) capability.
- O98 rear mounting with door coupling speeds tidy panel assembly.
- Red/yellow handle padlockable in 0 enhances maintenance safety.
- IP40 frontal protection and 65x65 mm front plate for neat fit.
- Withstands 6 kV impulse voltage for robust insulation performance.
- Operates from −25 to +55 °C for dependable service.
Technical Specification
- Product type designation: 7GN40
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- 7GN series rotary cam ON/OFF switch, 3-pole, 40 A Ith
- Red/yellow handle, padlockable in 0 position
- Door coupling components for rear mounting (O98)
- Protection covers
- 65x65 mm front plate
Applications
- Three-pole ON/OFF control of equipment requiring 40 A Ith capability
- Rear-mounted, door-coupled operator control in panels
- Maintenance lockout at the 0 position using the padlockable handle
- Installations within −25 to +55 °C operating environments
Frequently Asked Questions
What is the switching function of this device?
It is an ON/OFF switch with 3 poles, defined by switching diagram 10.
What current rating does it support?
It has an IEC conventional free air thermal current (Ith) of 40 A.
How is the switch mounted and actuated?
It features O98 rear mounting with door coupling and a red/yellow handle.
Can the handle be locked in the OFF position?
Yes, the handle is padlockable in the 0 position for secure isolation.
What protection and standards does it meet?
It has IP40 frontal protection and conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. De-energise circuits before work, observe the specified temperature and IP limits, and follow applicable standards and guidelines.
| Manufacturer Part Number | 7GN4010O98 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002616 |
