7GN3292U25 - 4 POLE 2 POS. CONTROL SWITCH GN3292U25 F
MPN: 7GN3292U25
Special Price
£48.24
£40.20
Regular Price
£80.41
Why Choose the 7GN3292U25?

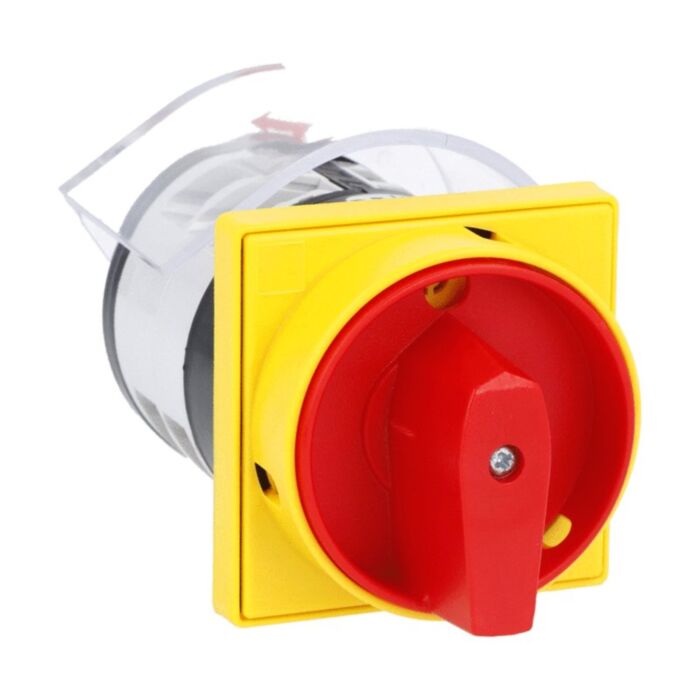

Designed for reliable isolation and control, the Lovato 7GN3292U25 rotary cam ON/OFF switch provides 4-pole switching at 32 A in the 7GN round-shaped contact block. Intended for U25 front mounting, it features a red/yellow handle padlockable in position 0, supplied with protection covers and a 65×65 mm front plate. SKU 7GN3292U25 suits industrial panels requiring clear, secure ON/OFF functionality.
Engineered to withstand demanding conditions, it offers a rated impulse withstand voltage Uimp of 6 kV, IP40 frontal protection and dependable service from −25 to +55 °C (storage −40 to +70 °C). The 7GN32 designation underlines compatibility within the series, with conformity to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14, plus a Sustainability certification for responsible selection.
Key Benefits
- 4-pole ON/OFF switching in a compact 7GN round-shaped contact block.
- 32 A Ith rating supports robust general-purpose circuit switching.
- U25 front mounting with 65×65 mm plate streamlines panel installation.
- Red/yellow handle padlockable in 0 aids safe lockout procedures.
- 6 kV rated impulse withstand voltage enhances surge resilience.
- IP40 frontal protection suitable for enclosed industrial control panels.
- Operates from −25 to +55 °C for dependable performance.
- Conforms to IEC/EN/BS 60947 standards for compliance assurance.
Technical Specification
- Product type designation: 7GN32
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Rotary cam ON/OFF switch assembly
- Red/yellow padlockable handle (position 0)
- 65×65 mm front plate
- Protection covers
- Basic installation leaflet
Applications
- Industrial control panels requiring 4-pole ON/OFF isolation
- Machine main switches with a lockable ‘0’ position
- Power distribution sub-circuits up to 32 A Ith
- OEM equipment using front-mounted rotary cam switches
- General-purpose switching where IP40 frontal is acceptable
Frequently Asked Questions
What is the series and designation of this switch?
It belongs to the 7GN series with a round-shaped contact block; product type designation is 7GN32.
What mounting and handle features are provided?
U25 front mounting with a red/yellow handle padlockable in position 0, plus protection covers.
What are the key electrical ratings?
Switching diagram 92 provides 4-pole ON/OFF switching; Ith is 32 A and Uimp is 6 kV.
What protection and temperature ratings apply?
The frontal degree of protection is IP40; operating temperature is −25 to +55 °C.
Which standards does it conform to?
IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before work and use the device within the specified ratings and environmental limits; ensure suitable enclosure as frontal protection is IP40.
| Manufacturer Part Number | 7GN3292U25 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003446 |
