7GN3292O88 - 4 POLE 2 POS.CONTROL SWITCH GN3292O88

Why Choose the 7GN3292O88?

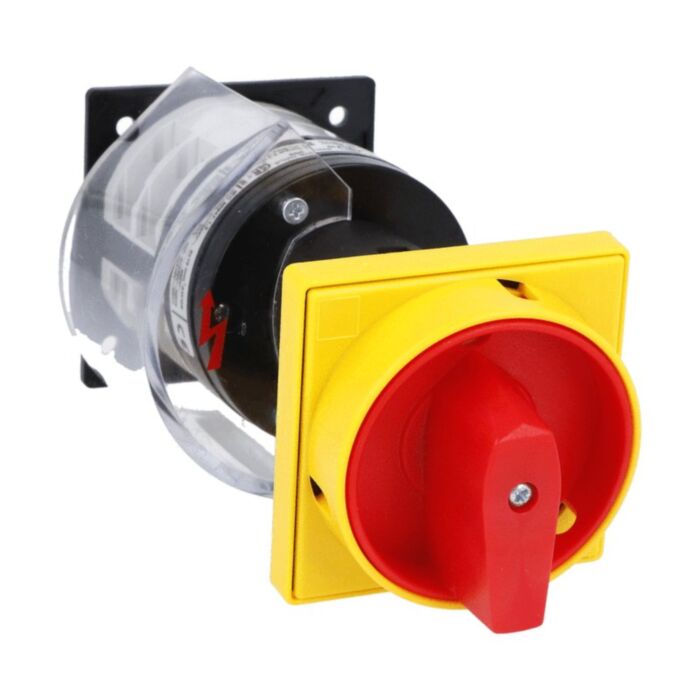

Designed for reliable isolation and control, the Lovato 7GN series rotary cam ON/OFF switch (SKU 7GN3292O88) delivers 4‑pole switching at 32 A. The O88 rear mounting configuration features a red/yellow handle padlockable in 0, door coupling and protection covers, with a 65X65mm front plate. Its round‑shaped 7GN contact block enhances compactness and integration in control panels requiring clear, secure ON/OFF actuation.

Engineered for demanding environments, the 7GN32 designation provides a rated impulse withstand voltage of 6 kV and IP40 frontal protection. Operating temperature spans −25 to +55 °C (storage −40 to +70 °C). Built to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, it supports sustainability goals while maintaining consistent performance in door‑coupled, rear‑mounted assemblies.

Key Benefits

• 4-pole ON/OFF switching for dependable isolation of multi-circuit loads.
• Rated 32 A Ith for robust conventional free air thermal performance.
• O88 rear mounting with door coupling streamlines panel integration.
• Red/yellow handle padlockable in 0 enhances lockout safety.
• IP40 frontal protection with 65X65mm front plate for neat fascia.
• 6 kV impulse withstand for reliable overvoltage resilience.
• Broad operating temperature range from −25 to +55 °C.

Technical Specification

• Product type designation: 7GN32
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP40

What’s Included

• Rotary cam switch assembly (7GN series)
• Red/yellow padlockable handle for 0 position
• Door coupling components and protection covers
• 65X65mm front plate

Applications

• ON/OFF switching of 4-pole circuits in control panels
• Rear-mounted, door-coupled isolation within enclosures
• Installations requiring padlockable OFF position for maintenance
• Panels needing IP40 frontal protection and compact round contact block

Safety note: Install and commission only by qualified personnel in accordance with applicable standards. Always isolate the supply before mounting, adjustment or maintenance.
