7GN3290U - SWITCH 1P GN3290U 2POS FRONT MOUNT 65X65
MPN: 7GN3290U
Special Price
£25.26
£21.05
Regular Price
£42.10
Why Choose the 7GN3290U?

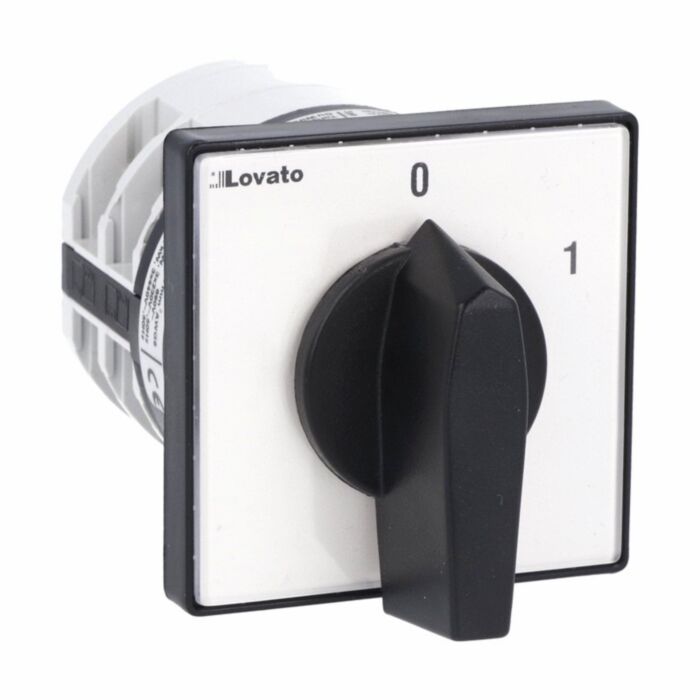

Designed for reliable control, the Lovato 7GN3290U rotary cam ON/OFF switch delivers 1‑pole 32A operation in a compact front‑mounting format. Part of the 7GN series with round-shaped contact block, it features a black handle and 65X65mm front plate for clean panel integration. Frontal IP40 protection suits protected enclosures and cabinets where a durable, easy-to-operate cam switch is required.
Engineered to international standards, the 7GN32 product designation offers Uimp 6 kV and operates from -25 to +55 °C (storage -40 to +70 °C). Mounting form U enables front mounting with a black handle. Conformity includes IEC/EN/BS 60947-1/-3/-5-1 plus UL60947-4-1 and CSA C22.2 n° 14, supporting dependable industrial ON/OFF switching performance.
Key Benefits
- 32A 1‑pole ON/OFF control for straightforward circuit switching.
- Front mounting with black handle for rapid, tidy installation.
- IP40 frontal protection suited to enclosed indoor panels.
- 6 kV impulse withstand voltage enhances transient resistance.
- Operates reliably from -25 to +55 °C ambient.
- 65X65mm front plate fits compact panel layouts.
- Compatible 7GN round-shaped contact block architecture.
- Complies with IEC/EN/BS, UL and CSA standards.
Technical Specification
- Product type designation: 7GN32
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN3290U rotary cam ON/OFF switch assembly
- 65X65mm front plate
- Black handle (front mounting)
- Fixing hardware for panel installation
Applications
- ON/OFF control of single-circuit loads in control panels
- General machinery and equipment switching in protected enclosures
- HVAC fans, pumps and auxiliary circuits control
- Industrial cabinets and distribution boards panel interfaces
- OEM panel building using 7GN series cam switches
Frequently Asked Questions
What is the current rating of the 7GN3290U?
It has an IEC conventional free air thermal current (Ith) of 32 A.
Is the switch suitable for front mounting?
Yes. Mounting form U indicates front mounting with a black handle and 65X65mm plate.
What protection rating does the front have?
The frontal degree of protection is IP40.
What temperature ranges does it support?
Operating range is -25 to +55 °C; storage is -40 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Always isolate and verify the circuit is de-energised before mounting or servicing, and follow applicable standards and local regulations.
| Manufacturer Part Number | 7GN3290U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144005228 |
