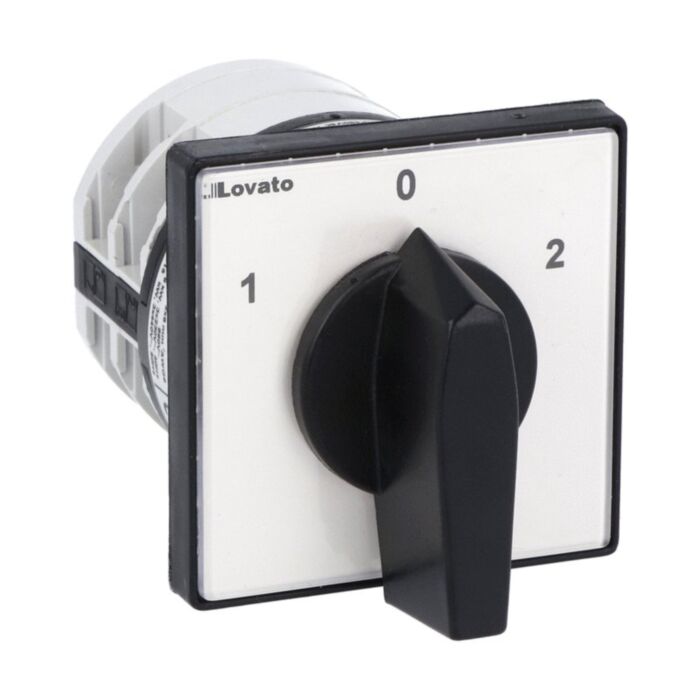

7GN3252U - SWITCH 2P GN3252U 3POS FRONT MOUNT 65X65
MPN: 7GN3252U
Special Price
£44.00
£36.67
Regular Price
£73.34
Why Choose the 7GN3252U?
The Lovato 7GN3252U is a 7GN series rotary cam changeover switch designed for dependable 2-pole, 32A switching. It features front mounting with a black handle (U) and a 65x65mm front plate for clean panel integration. With IP40 frontal protection and a rated impulse withstand voltage of 6 kV, it delivers robust performance in control and distribution applications.
Engineered on the 7GN round-shaped contact block, this changeover switch follows switching diagram 52 for precise 2-pole transfer. It operates reliably from -25 to +55 °C and stores from -40 to +70 °C. Rated Ith 32 A and compliant with IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14, it supports consistent performance and simplified specification.
Key Benefits
- Reliable 2-pole changeover per diagram 52 for clear source transfer.
- 32 A Ith capacity for robust low-voltage switching duties.
- Front mounting with black handle (U) for tidy, accessible control.
- 65x65 mm front plate suits compact panel layouts.
- IP40 frontal protection guards against solid intrusions in the operator area.
- 6 kV impulse withstand enhances resilience against transient overvoltages.
- Wide operating range -25 to +55 °C for varied environments.
- Conforms to IEC, UL and CSA standards for assured compliance.
Technical Specification
- Product type designation: 7GN32
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN3252U changeover switch assembly with black handle
- 65x65 mm front plate
- Panel mounting nuts and fixings
- Basic installation and safety information
Applications
- Source changeover between two circuits in control panels
- Machine and equipment switching requiring 2-pole transfer
- Distribution and auxiliary circuit selection duties
- OEM panel building and maintenance replacements
Frequently Asked Questions
What is the switching configuration of the Lovato 7GN3252U?
It follows switching diagram 52, providing a 2-pole changeover function.
What current rating does this changeover switch support?
The IEC conventional free air thermal current (Ith) is 32 A.
How is the device mounted and what is the plate size?
It is front mounting with a black handle (U) and includes a 65X65mm front plate.
What environmental and protection ratings apply?
It operates from -25 to +55 °C with IP40 frontal protection.
Does it meet recognised standards?
Yes, it conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate all power before work and follow applicable standards and safety instructions.
| Manufacturer Part Number | 7GN3252U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003439 |
