7GN3210P - 3P 2POS SWITCH GN3210P C/W HOUSING
MPN: 7GN3210P
Special Price
£50.11
£41.76
Regular Price
£83.53
Why Choose the 7GN3210P?

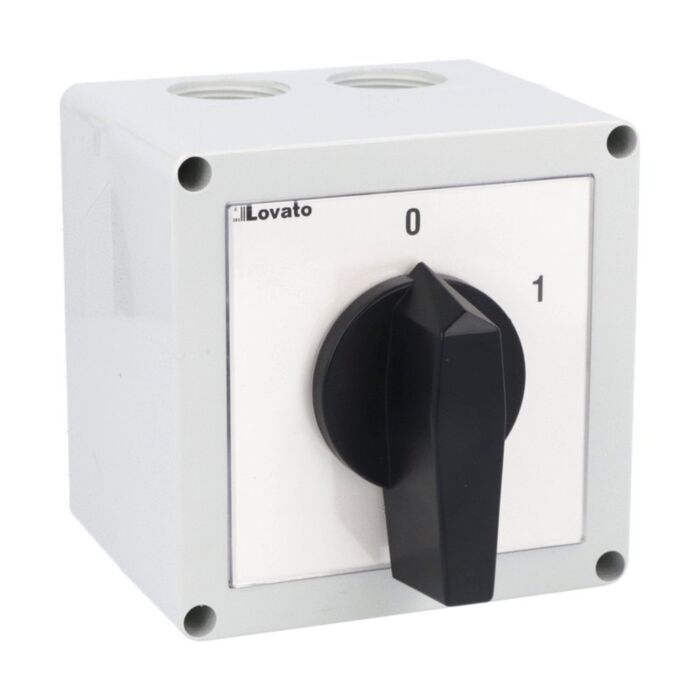

The Lovato 7GN3210P is an enclosed rotary cam ON/OFF switch designed for dependable isolation and control. This 3‑pole device provides an IEC conventional free air thermal current (Ith) of 32 A and features the 7GN series round-shaped contact block. Supplied in a compact 90×90 mm plastic enclosure with a black rotary handle, it delivers straightforward, positive actuation for panel and machinery applications requiring clear ON/OFF functionality.
With IP65 frontal protection, a rated impulse withstand voltage (Uimp) of 6 kV, and an operating range of −25 to +55 °C, the 7GN32 designation ensures reliable service in demanding environments. Mounting form P denotes the plastic enclosure with black handle. Conformity to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1 supports assured compliance in UK installations and integration into industrial control panels.
Key Benefits
- 3-pole ON/OFF switching with IEC conventional free air thermal current 32 A.
- IP65 frontal protection for dependable panel-mounted operation.
- Compact 90×90 mm plastic enclosure optimises space in control panels.
- Black rotary handle ensures clear, positive switching feedback.
- Operates reliably across −25 to +55 °C ambient temperatures.
- Rated impulse withstand voltage Uimp 6 kV for robust performance.
- Compliant with IEC/EN/BS 60947-1, 60947-3 and 60947-5-1 standards.
- 7GN series round-shaped contact block for consistent switching action.
Technical Specification
- Product type designation: 7GN32
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- 7GN3210P enclosed rotary ON/OFF switch assembly (3-pole, 32 A)
- Integrated black rotary handle and plastic enclosure (90×90 mm)
- Manufacturer documentation (datasheet via download)
Applications
- Main ON/OFF control for three-pole circuits
- Local isolation for machinery and equipment
- Panel-mounted power switching requiring IP65 frontal protection
- HVAC, pumps and process equipment control
Frequently Asked Questions
What is the current rating of the 7GN3210P?
The IEC conventional free air thermal current (Ith) is 32 A.
What IP protection does the front provide?
It provides IP65 frontal protection.
What is the operating temperature range?
The operating range is −25 to +55 °C.
Which standards does this switch conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1.
What switching function does it provide?
Switching diagram 10 indicates an ON/OFF switch with 3 poles.
Safety note: Install and commission only by qualified personnel. Isolate power before work and follow applicable standards and manufacturer guidance.
| Manufacturer Part Number | 7GN3210P |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144005242 |
