7GN3210O88 - 3P 2POS SWITCH GN3210O88 REAR MNTG DOOR
MPN: 7GN3210O88
Special Price
£54.13
£45.11
Regular Price
£90.22
Why Choose the 7GN3210O88?

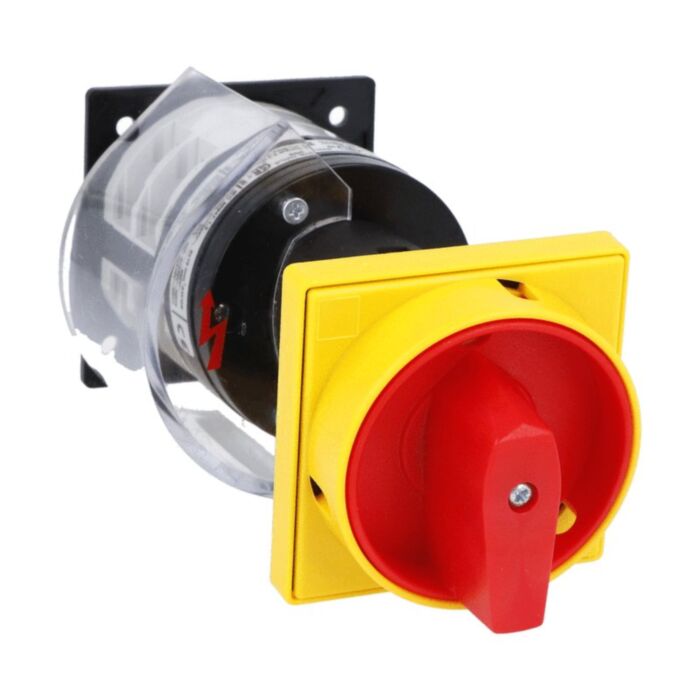

Lovato’s 7GN3210O88 rotary cam ON/OFF switch delivers robust 3‑pole control for industrial panels. Part of the 7GN round-shaped contact block series, this model provides 32 A Ith performance and a clear red/yellow handle padlockable in 0. Designed for rear mounting form O88 with door coupling and protection covers, it includes a 65 x 65 mm front plate for neat, consistent panel presentation.
Built for dependable service, the 7GN32 designation offers 6 kV impulse withstand and operates from -25 to +55 °C (storage -40 to +70 °C). The frontal IP40 rating suits enclosed control cabinets. Conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, supporting compliance needs across varied installations.
Key Benefits
- 3-pole ON/OFF switching for reliable circuit control.
- 32 A Ith capacity for typical industrial loads.
- Rear mounting O88 with door coupling for secure operation.
- Red/yellow handle padlockable in 0 enhances lockout safety.
- IP40 frontal protection suitable for enclosed panels.
- Withstands 6 kV impulse voltage for resilience.
- Operates -25 to +55 °C for wider ambient conditions.
Technical Specification
- Product type designation: 7GN32
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Rotary cam switch 7GN series, 3-pole 32A unit
- Red/yellow handle padlockable in 0
- Door coupling mechanism
- Protection covers
- 65 x 65 mm front plate
Applications
- Panel-mounted ON/OFF control for three-pole circuits
- Machine and equipment doors requiring a padlockable OFF position
- Industrial control cabinets using rear-mounted operators
- OEM assemblies needing a compact 65 x 65 mm operator plate
- General-purpose switching within compliant control systems
Frequently Asked Questions
What is the current rating of the 7GN3210O88?
It has an IEC conventional free air thermal current (Ith) of 32 A.
How many poles does this switch control?
It is a 3-pole ON/OFF switch as per switching diagram 10.
What mounting and operator features does it include?
Rear mounting form O88 with a red/yellow handle padlockable in 0, plus door coupling and protection covers.
What is the frontal IP rating?
The frontal degree of protection is IP40, suitable for enclosed panels.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. De-energise circuits before work, use the padlockable 0 position during maintenance, and operate within the specified temperature and IP40 conditions.
| Manufacturer Part Number | 7GN3210O88 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002562 |
