7GN2592U25 - 4 POLE 2 POS. CONTROL SWITCH GN2592U25 F
MPN: 7GN2592U25
Special Price
£38.03
£31.69
Regular Price
£63.37
Why Choose the 7GN2592U25?

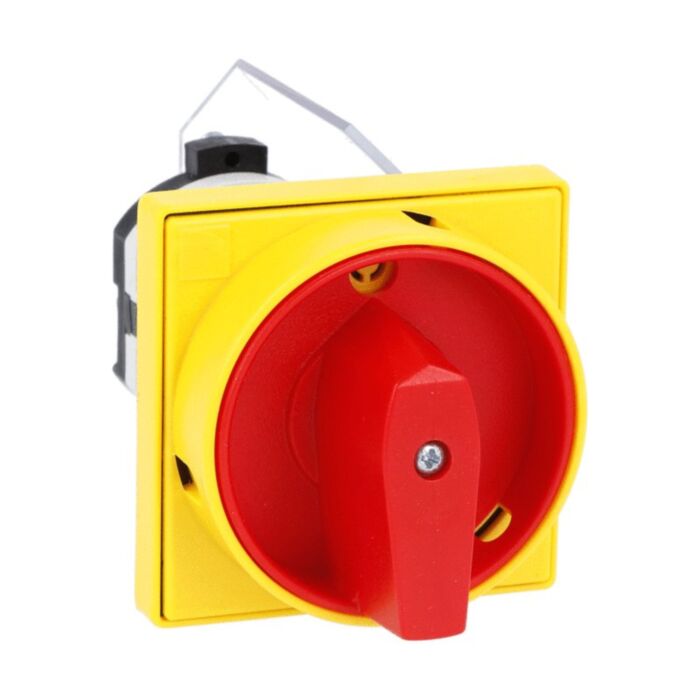

Lovato’s 7GN2592U25 rotary cam ON/OFF switch delivers reliable four‑pole isolation at 25 A for industrial panels. Built on the 7GN round-shaped contact block, it features U25 front mounting with a red/yellow handle that is padlockable in 0 and supplied with protection covers. A compact 65 x 65 mm front plate supports neat installations, while the intuitive rotary action provides clear, positive switching for straightforward control and safe equipment shut‑off.
Engineered for durability, the 7GN25 designation offers 6 kV impulse withstand (Uimp) and IP40 frontal protection, with operating temperatures from -25 to +55 °C (-40 to +70 °C storage). It meets IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, helping specifiers standardise on a proven solution for clear ON/OFF control, isolation, and maintenance lockout across a wide range of control applications.
Key Benefits
- Positive ON/OFF control with 4-pole rotary cam switching.
- Rated for 25 A IEC conventional free air thermal current.
- U25 front mounting with red/yellow handle simplifies panel integration.
- Padlockable in 0 position for maintenance safety and isolation.
- IP40 frontal protection with robust 65 x 65 mm plate.
- High 6 kV impulse withstand for transient overvoltage resilience.
- Compliant with IEC/EN/BS 60947 series, UL and CSA standards.
Technical Specification
- Product type designation: 7GN25
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Rotary cam switch assembly, 4 poles, 25 A
- Red/yellow handle, padlockable in 0
- 65 x 65 mm front plate
- Protection covers
Applications
- ON/OFF control and isolation in industrial control panels
- Four-pole switching and isolation requirements up to 25 A Ith
- Equipment and panels requiring a padlockable OFF position
- Installations specifying IP40 frontal protection
- Projects requiring compliance with IEC/EN/BS 60947 standards
Frequently Asked Questions
What is the current rating of the Lovato 7GN2592U25?
It is rated at 25 A IEC conventional free air thermal current (Ith).
Can the handle be padlocked for safety?
Yes, the red/yellow handle is padlockable in the 0 position and includes protection covers.
How is the switch mounted and what is the front plate size?
It uses U25 front mounting and has a 65 x 65 mm front plate.
What environmental protection and temperature ranges does it offer?
The frontal degree is IP40, with -25 to +55 °C operation and -40 to +70 °C storage.
Which standards does the product conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and service only by qualified personnel. Isolate power before work, use the padlockable 0 position during maintenance, and operate within the specified ratings and standards.
| Manufacturer Part Number | 7GN2592U25 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 3850144004863 |
