7GN2592O88 - 4 POLE 2 POS.CONTROL SWITCH GN2592O88
MPN: 7GN2592O88
Special Price
£49.03
£40.86
Regular Price
£81.72
Why Choose the 7GN2592O88?

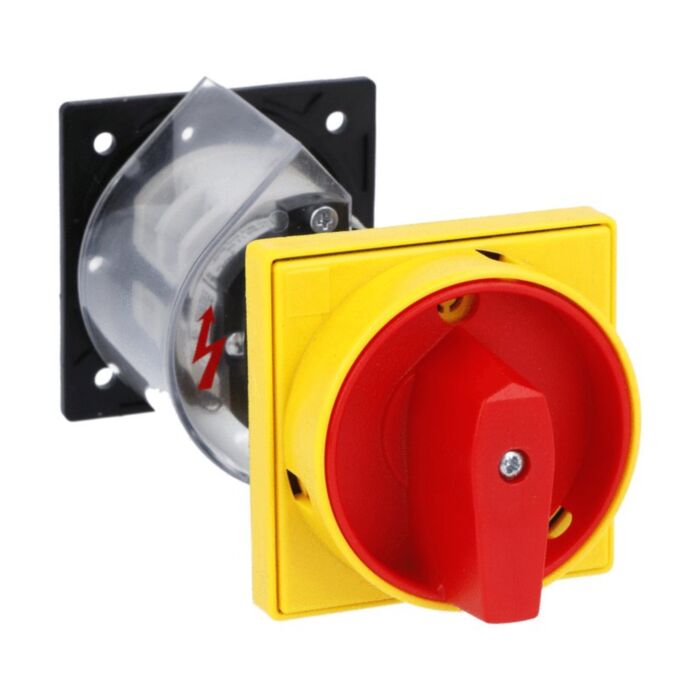

The Lovato 7GN2592O88 rotary cam ON/OFF switch delivers reliable 4‑pole isolation at 25 A for panel builders and OEMs. Designed for rear mounting, it features a red/yellow handle padlockable in 0 for secure lockout, plus door coupling and protection covers. The compact 65X65mm front plate and 7GN round-shaped contact block design make integration straightforward in control panels requiring clear, positive ON/OFF operation.
Built on the 7GN – round-shaped contact block series with product designation 7GN25, this switch carries a 6 kV impulse withstand rating and IP40 frontal protection. It operates from -25 to +55 °C and stores from -40 to +70 °C. Switching diagram 92 provides clear 4-pole ON/OFF functionality, while conformity with IEC/EN/BS 60947, UL and CSA standards supports compliance in UK and international projects.
Key Benefits
- Secure isolation with 4-pole ON/OFF switching to diagram 92.
- Rear mounting with door coupling simplifies panel integration.
- Red/yellow handle padlockable in 0 enhances lockout safety.
- Rated for 25 A Ith for robust switching performance.
- IP40 frontal protection suits indoor control panel applications.
- Withstands 6 kV impulse for improved insulation coordination.
- Operates from -25 to +55 °C for reliable service.
Technical Specification
- Product type designation: 7GN25
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- 7GN series rotary cam ON/OFF switch, 4-pole, 25 A
- Red/yellow handle, padlockable in 0 position
- Door coupling and protection covers
- 65X65mm front plate
- Installation and safety information
Applications
- Main ON/OFF isolation in industrial control panels
- Machine and equipment power switching up to 25 A Ith
- Panel door-mounted operator with rear-mounted mechanism
- Switchgear and control cabinet upgrades and maintenance
Frequently Asked Questions
What is the current rating of the Lovato 7GN2592O88?
The IEC conventional free air thermal current (Ith) is 25 A. This supports 4‑pole ON/OFF switching to diagram 92.
Can the handle be padlocked?
Yes. The red/yellow handle is padlockable in the 0 position for safety.
What mounting configuration does this switch use?
It is O88 rear mounting with door coupling and protection covers. Supplied with a 65X65mm front plate.
What environmental ratings does it have?
The frontal degree of protection is IP40. Operating temperature is -25 to +55 °C, storage -40 to +70 °C.
Which standards does it comply with?
It meets IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Installation and commissioning must be carried out by qualified personnel. Isolate all power sources and padlock the handle in 0 before any maintenance, following applicable standards.
| Manufacturer Part Number | 7GN2592O88 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 3850144000582 |
