7GN2591U - 2P SWITCH GN2591U 2POS FRONT MOUNT 48X48
MPN: 7GN2591U
Special Price
£25.67
£21.39
Regular Price
£42.79
Why Choose the 7GN2591U?

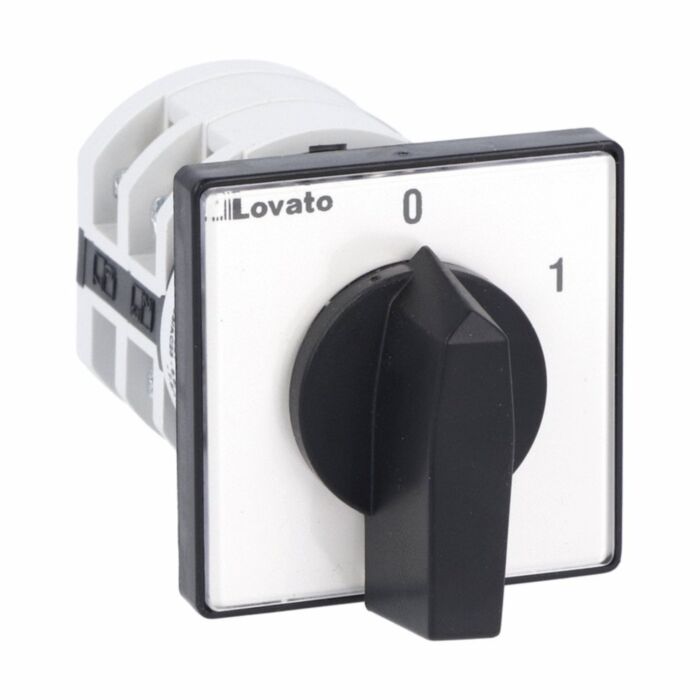

Lovato’s 7GN2591U rotary cam ON/OFF switch delivers dependable two-pole switching in a compact, panel-friendly format. Part of the 7GN series with a round-shaped contact block, it provides clear ON/OFF control via a black handle and 48X48mm front plate. Rated Ith 25 A and Uimp 6 kV, this unit is designed for front mounting (form U) and compliant performance in industrial control assemblies.
Engineered for robust service, the 7GN25 platform carries an IP40 frontal rating and operates from -25 to +55 °C with storage down to -40 °C. Conformity to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL and CSA standards, supports use in UK and global panels. Ideal where reliable, simple ON/OFF control is required across two poles within protected indoor enclosures.
Key Benefits
- Two-pole ON/OFF operation per switching diagram 91 for clear circuit control.
- Rated Ith 25 A for dependable performance across common industrial circuits.
- Front mounting form U with black handle for quick, ergonomic access.
- Compact 48X48mm front plate simplifies panel layout and space planning.
- IP40 frontal protection suited to protected indoor enclosures and cabinets.
- Wide operating temperature range of -25 to +55 °C.
- Rated impulse withstand voltage Uimp 6 kV for transient tolerance.
- Conforms to IEC/EN/BS, UL and CSA standards for assured compliance.
Technical Specification
- Product type designation: 7GN25
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- 7GN2591U rotary cam ON/OFF switch, assembled with black handle
- 48X48mm front plate and bezel
- Front-mounting fixing screws
- Manufacturer product datasheet (downloadable)
Applications
- Industrial control panels requiring simple two-pole ON/OFF switching
- Machine and equipment ON/OFF control at the operator panel
- Distribution boards and switchboards within protected indoor enclosures
- General-purpose control cabinets in commercial and industrial sites
- Retrofits where a 48X48mm front plate footprint is specified
Frequently Asked Questions
What is the current rating of the 7GN2591U?
It has an IEC conventional free air thermal current (Ith) of 25 A.
Is this switch suitable for outdoor use?
The frontal rating is IP40, so it is intended for protected indoor enclosures.
How is the unit mounted on the panel?
It is front mounted (form U) with a black handle and 48X48mm front plate.
Does it switch two poles simultaneously?
Yes, switching diagram 91 denotes an ON/OFF switch with two poles.
Which standards does it conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before work, observe the 25 A Ith, temperature limits and IP40 frontal rating, and follow applicable standards and manufacturer instructions.
| Manufacturer Part Number | 7GN2591U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002524 |
