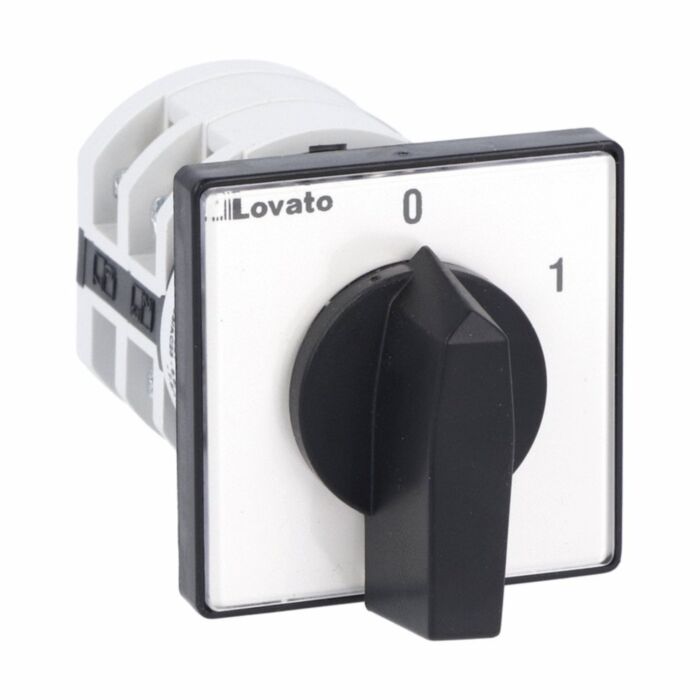

7GN2590U - 1P 2POS SWITCH 48X48 FRONT MOUNTING
MPN: 7GN2590U
Special Price
£21.64
£18.03
Regular Price
£36.05
Why Choose the 7GN2590U?
Lovato’s 7GN2590U rotary cam ON/OFF switch delivers dependable 1-pole, 25 A control in a compact format. Designed for front mounting with a black handle and a 48x48 mm front plate, it fits neatly into space-conscious panels. The 7GN series round-shaped contact block design promotes consistent actuation, while the IP40 frontal rating suits protected indoor enclosures across industrial and commercial applications.
Engineered for reliable service, the 7GN25 designation provides a rated impulse withstand voltage of 6 kV and an operating temperature range of -25 to +55 °C (storage -40 to +70 °C). Conformity with IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14 underpins assured performance and safety. Ideal for machinery ON/OFF duties and general power switching where a single-pole solution is required.
Key Benefits
- Reliable 1-pole 25A ON/OFF control for general switching duties.
- Front mounting with black handle for straightforward operator access.
- Compact 48x48 mm front plate optimises crowded panel layouts.
- IP40 frontal protection suitable for protected indoor enclosures.
- 6 kV impulse withstand rating enhances electrical robustness.
- Wide -25 to +55 °C operating temperature range.
- 7GN round-shaped contact block design from Lovato.
- Conformity with IEC/EN/BS 60947 standards and North American equivalents.
Technical Specification
- Product type designation: 7GN25
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN2590U rotary cam ON/OFF switch unit
- Black front-mounting handle
- 48x48 mm front plate
Applications
- Panel-mounted ON/OFF control for machinery and equipment
- Power switching in industrial control panels
- General-purpose switching where a 1-pole 25A device is suitable
- Start/stop control for HVAC units, pumps and fans
Frequently Asked Questions
Is the 7GN2590U a 1-pole switch?
Yes, it is a 1-pole ON/OFF rotary cam switch per diagram 90.
What current rating does it support?
It has an IEC conventional free air thermal current (Ith) of 25 A.
How is it mounted and what handle is provided?
It is for front mounting and comes with a black handle.
What are the front plate size and IP rating?
The front plate is 48x48 mm and the frontal protection is IP40.
What environmental and electrical ratings apply?
Operating range is -25 to +55 °C with a rated impulse withstand voltage of 6 kV.
Safety note: Install and service only by qualified personnel. Isolate power before work, observe the IP40 frontal rating and temperature limits, and follow applicable IEC/EN/BS 60947 guidelines.
| Manufacturer Part Number | 7GN2590U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002869 |
