7GN2553P - 3P 3POS SWITCH GN2553P C/W HOUSING

Why Choose the 7GN2553P?

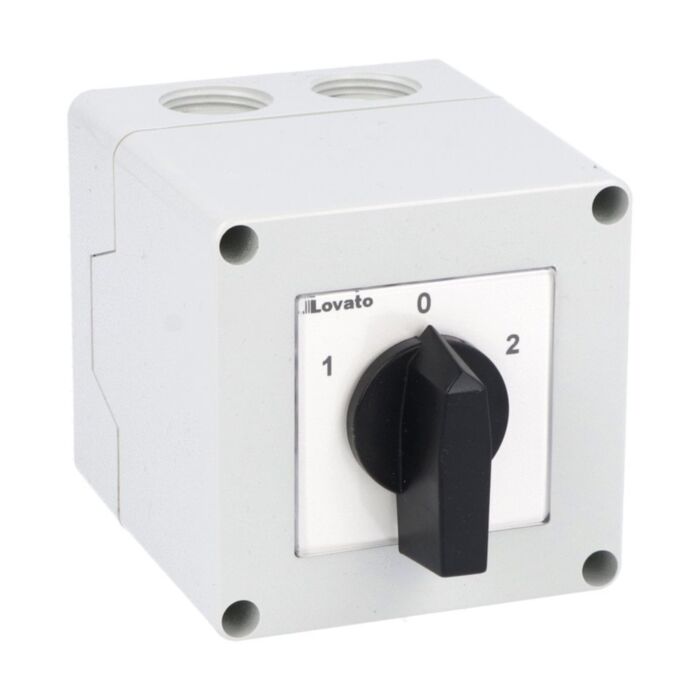

Lovato's 7GN2553P enclosed rotary cam changeover switch delivers dependable 3-pole switching at 25 A within a compact 75x75 mm plastic enclosure. The black rotary handle provides positive operation, while the IP65 frontal protection helps resist dust and water jets at the operator interface. Designed around the 7GN round-shaped contact block series, this unit is ideal for reliable changeover duties in demanding industrial control environments.

With a 6 kV rated impulse withstand voltage and an operating range of -25 to +55 °C, the 7GN25 platform offers robust insulation and dependable performance. Switching diagram 53 supports 3-pole changeover for 2-speed motor starting with separate windings. Mounting form P confirms the plastic enclosure with black handle. Conforms to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1 for assured compliance.

Key Benefits

• Reliable 3-pole changeover switching for demanding industrial control duties.
• 25 A Ith rating supports robust thermal performance under IEC conditions.
• IP65 frontal protection safeguards the operator interface against dust and water.
• Compact 75x75 mm plastic enclosure simplifies installation in tight panels.
• 6 kV impulse withstand enhances insulation strength and durability.
• Switching diagram 53 suits 2-speed motor starting with separate windings.
• Operates from -25 to +55 °C for varied environmental conditions.

Technical Specification

• Product type designation: 7GN25
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• Pre-assembled 7GN series changeover switch in plastic enclosure
• Black rotary handle
• Installation leaflet
• Standard packaging

Applications

• Changeover and transfer switching in control and automation circuits
• 2-speed motor starting with separate windings per diagram 53
• OEM machinery builds and panelboard assemblies requiring 3-pole changeover
• Industrial switchgear, maintenance and retrofit projects
• Load selection or source transfer within IP65 operator interfaces

Safety note: Installation and commissioning must be performed by qualified personnel. Always isolate power before work and follow applicable IEC/EN/BS 60947 standards and manufacturer instructions.
