7GN2510U25 - 3P 2POS SWITCH GN2510U25 FRONT MOUNTING
MPN: 7GN2510U25
Special Price
£35.51
£29.59
Regular Price
£59.17
Why Choose the 7GN2510U25?

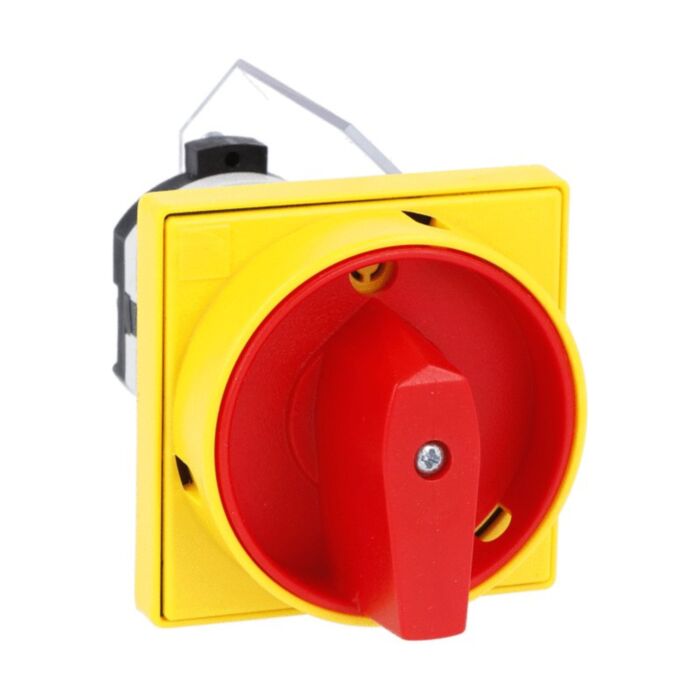

Lovato's 7GN2510U25 rotary cam ON/OFF switch delivers dependable 3-pole isolation at 25 A Ith for control and maintenance tasks. Designed for front mounting (U25), it features a red/yellow handle that can be padlocked in 0 with protection covers and a 65X65mm front plate. Part of the 7GN series with a round-shaped contact block, it's built for clear operation in industrial panels.
Engineered for reliability, the 7GN25 designation offers a 6 kV rated impulse withstand (Uimp) and IP40 frontal protection, operating from -25 to +55 °C with storage down to -40 °C. Conforming to IEC/EN/BS 60947-1/-3/-5-1 plus UL and CSA standards, this switch integrates smoothly into control panels where robust, clearly identifiable isolation and straightforward front access are essential.
Key Benefits
- 3-pole ON/OFF switching with clear rotary cam action
- 25 A conventional free air thermal current (Ith) for typical control loads
- Front mounting U25 with red/yellow padlockable handle for safe lock-off
- Protection covers and 65X65mm front plate for tidy, secure panel fit
- 6 kV Uimp and IP40 frontal protection for reliable service
- Operates from -25 to +55 °C for varied environments
- 7GN series round-shaped contact block for compact integration
Technical Specification
- Product type designation: 7GN25
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- 7GN2510U25 rotary cam ON/OFF switch assembly
- Red/yellow padlockable handle with protection covers (integrated)
- 65X65mm front plate (integrated)
- Installation instructions
Applications
- Control panels requiring 3-pole ON/OFF isolation up to 25 A
- Machine and equipment isolation with padlockable 0 position
- Industrial maintenance lock-off points and clear operator control
- General-purpose switching in automation cabinets within specified limits
Frequently Asked Questions
What is the current rating of the 7GN2510U25?
It has an IEC conventional free air thermal current (Ith) of 25 A.
Is the handle padlockable?
Yes, the red/yellow handle is padlockable in the 0 position per the U25 mounting form.
What is the IP rating at the front?
The frontal degree of protection is IP40.
What standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, plus UL60947-4-1 and CSA C22.2 n° 14.
What are the operating temperature limits?
The operating temperature range is -25 to +55 °C; storage is -40 to +70 °C.
Safety note: Install and commission by a qualified electrician. Isolate the supply before work, observe the IP40 frontal rating, and use the padlockable 0 position for maintenance lock-off.
| Manufacturer Part Number | 7GN2510U25 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002494 |
