7GN2510U - 3P SWITCH GN2510U 2 POSITION FRN/MNTG
MPN: 7GN2510U
Special Price
£31.28
£26.07
Regular Price
£52.14
Why Choose the 7GN2510U?

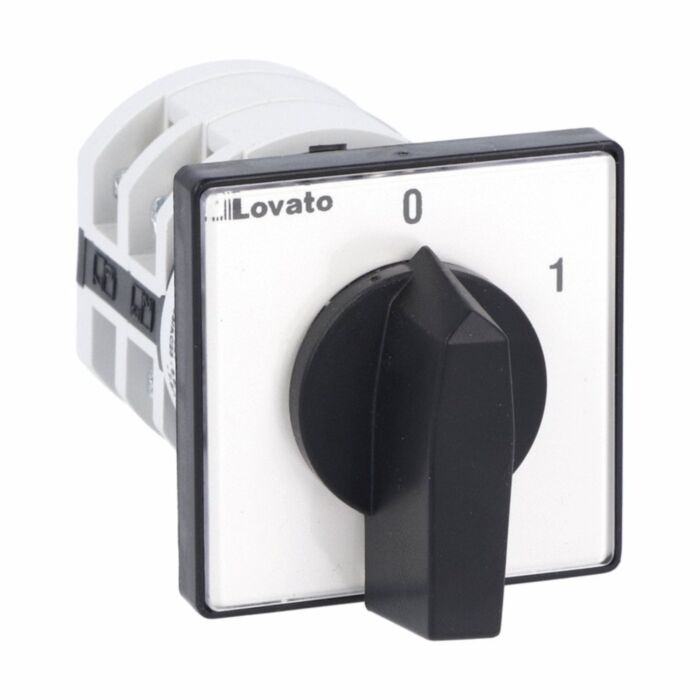

Lovato 7GN2510U rotary cam ON/OFF switch provides reliable 3‑pole switching at 25A Ith for control and power circuits. Designed for front mounting with a black handle, it includes a 48x48mm front plate and belongs to the 7GN series with a round‑shaped contact block. Product type designation 7GN25 and switching diagram 10 support straightforward selection for ON/OFF duties where compact dimensions and clear operation are essential.
With a rated impulse withstand voltage of 6 kV and a frontal IP40 rating, the 7GN2510U is built for dependable service in panels. It operates from -25 to +55 °C and stores from -40 to +70 °C. Conformity includes IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, helping specifiers meet international and UK requirements.
Key Benefits
- 3‑pole ON/OFF switching aligned with diagram 10 functionality.
- 25A Ith rating supports robust control and power duties.
- Front mounting U form with black handle for direct operation.
- Compact 48x48mm front plate saves panel space.
- IP40 frontal protection suits enclosed control panel environments.
- 6 kV Uimp withstand enhances surge resilience.
- Wide operating temperature range from -25 to +55 °C.
- Compliance with IEC/EN/BS, UL and CSA standards.
Technical Specification
- Product type designation: 7GN25
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN2510U rotary cam ON/OFF switch assembly
- 48x48mm front plate with black handle (front mounting)
- Product identification label and markings
- Digital datasheet for specifications
Applications
- Control panels requiring 3‑pole ON/OFF switching
- Machine control circuits within the stated current and temperature limits
- HVAC fans, pumps or auxiliary circuits using 25A Ith switching
- General industrial panels needing compact 48x48mm operator interfaces
Frequently Asked Questions
What is the current rating of the 7GN2510U?
It has an IEC conventional free air thermal current Ith of 25 A.
How is this switch mounted and operated?
It is the U mounting form for front mounting with a black handle and a 48x48mm front plate.
What are the operating and storage temperature ranges?
Operating range is -25 to +55 °C; storage range is -40 to +70 °C.
What is the frontal ingress protection rating?
The frontal IP degree is IP40.
Which standards does it conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission by qualified personnel only. De-energise circuits before work, and ensure the switch is applied within its stated ratings and relevant standards.
| Manufacturer Part Number | 7GN2510U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002487 |
