7GN2510P - 3P 2POS SWITCH GN2510P C/W HOUSING

Why Choose the 7GN2510P?

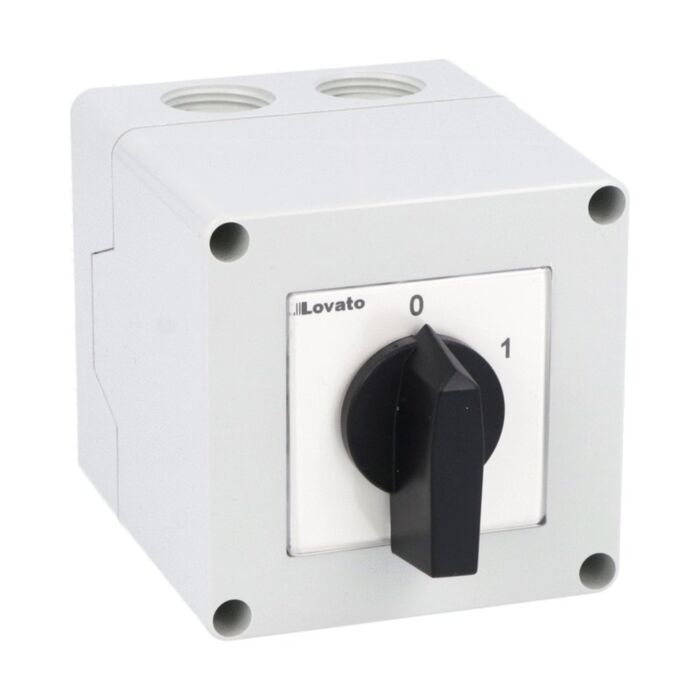

Lovato 7GN2510P is an enclosed rotary cam ON/OFF switch engineered for dependable isolation and control. Part of the 7GN series with a round-shaped contact block, it provides three-pole switching (diagram 10) with a conventional free air thermal current Ith of 25 A. The compact 75x75 mm plastic enclosure with a black handle simplifies installation while protecting the mechanism for routine machine power switching and clear, tactile ON/OFF operation.

Designed for demanding environments, the 7GN25 designation delivers IP65 frontal protection and a 6 kV rated impulse withstand voltage. Operating reliably from -25 to +55 °C and stored from -40 to +70 °C, this ON/OFF switch aligns with IEC/EN/BS 60947-1, 60947-3 and 60947-5-1. Choose Lovato quality to standardise your control gear with consistent performance, straightforward specification, and a durable black-handle enclosure for confident, repeatable switching.

Key Benefits

• Three-pole ON/OFF switching (diagram 10) for clear, decisive isolation.
• 25 A Ith rating supports reliable control in diverse applications.
• IP65 frontal protection safeguards the operator interface against ingress.
• 6 kV impulse withstand enhances resilience to transient overvoltages.
• Compact 75x75 mm plastic enclosure with robust black handle.
• 7GN series round-shaped contact block for consistent performance.
• Conforms to IEC/EN/BS 60947-1, -3 and -5-1 standards.
• Sustainability certification supports responsible specification and purchasing policies.

Technical Specification

• Product type designation: 7GN25
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• Lovato 7GN2510P enclosed 3-pole ON/OFF rotary cam switch
• Plastic enclosure 75x75 mm with black handle (pre-fitted)
• Manufacturer documentation (datasheet/specification information)

Applications

• Equipment ON/OFF control in industrial and commercial panels
• Power switching for three-pole circuits up to 25 A Ith
• Installations requiring IP65 frontal protection and robust durability
• OEM control gear using 7GN series rotary cam switches

Safety note: Installation and operation should be performed by qualified personnel. Always isolate power before work and verify the switch’s ratings and protection class suit the application.
