7GN2510O88 - 3P 2POS SWITCH GN2510O88 REAR MNTG DOOR

Why Choose the 7GN2510O88?

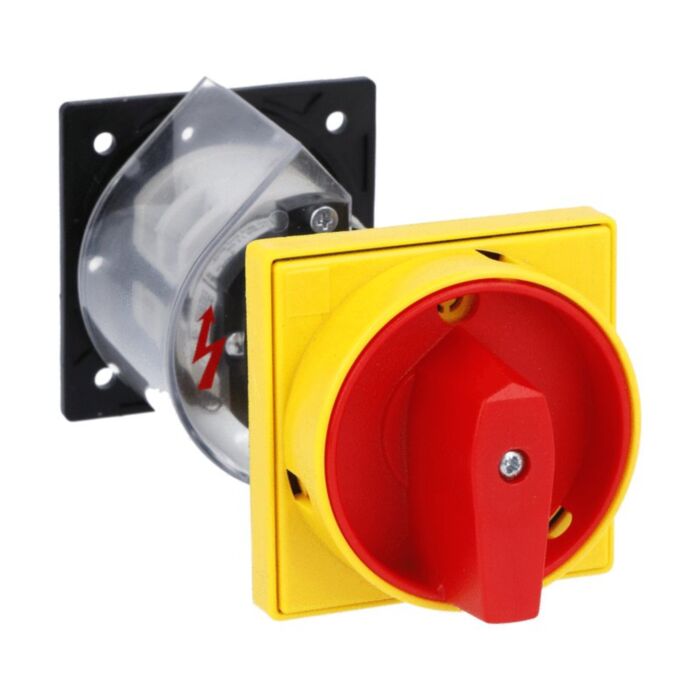

Engineered by Lovato, the 7GN2510O88 rotary cam ON/OFF switch delivers reliable isolation for three-phase circuits. This 3-pole, 25 A device is designed for rear mounting (O88) and features a red/yellow handle padlockable in position 0, with door coupling and protection covers. Supplied with a 65X65mm front plate, it provides straightforward panel integration for dependable ON/OFF control in industrial control panels and machinery.

Part of the 7GN series with a round-shaped contact block, this switch offers a frontal IP40 degree of protection and a rated impulse withstand voltage of 6 kV. It operates from −25 to +55 °C and stores from −40 to +70 °C. Built to IEC/EN/BS 60947-1/-3/-5-1 and recognised by UL60947-4-1 and CSA C22.2 n° 14, it supports robust, standards-compliant ON/OFF switching.

Key Benefits

• 3-pole, 25 A rating for reliable three-phase circuit isolation.
• Rear mounting O88 with door coupling simplifies panel assembly.
• Red/yellow handle padlockable in 0 enhances safe lock-off.
• 65X65mm front plate enables neat, compact fascia integration.
• IP40 frontal protection suitable for enclosed control panels.
• 6 kV impulse withstand improves transient resilience.
• Operates from −25 to +55 °C for demanding environments.
• Meets IEC/EN/BS and North American standards for compliance.

Technical Specification

• Product type designation: 7GN25
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP40

What’s Included

• Rotary cam ON/OFF switch assembly (3-pole, 25 A)
• Red/yellow padlockable handle for position 0
• Door coupling and protection covers
• 65X65mm front plate
• Installation leaflet

Applications

• Main ON/OFF isolation for industrial control panels
• Machine and equipment control cabinets requiring 3-pole switching
• OEM panel builds needing rear-mounted, padlockable operators
• Power distribution sub-panels within enclosed environments
• Maintenance lock-off at the panel door in position 0

Safety note: Install and commission only by qualified personnel. Isolate power before work and follow IEC/EN/BS 60947 requirements and local regulations.
