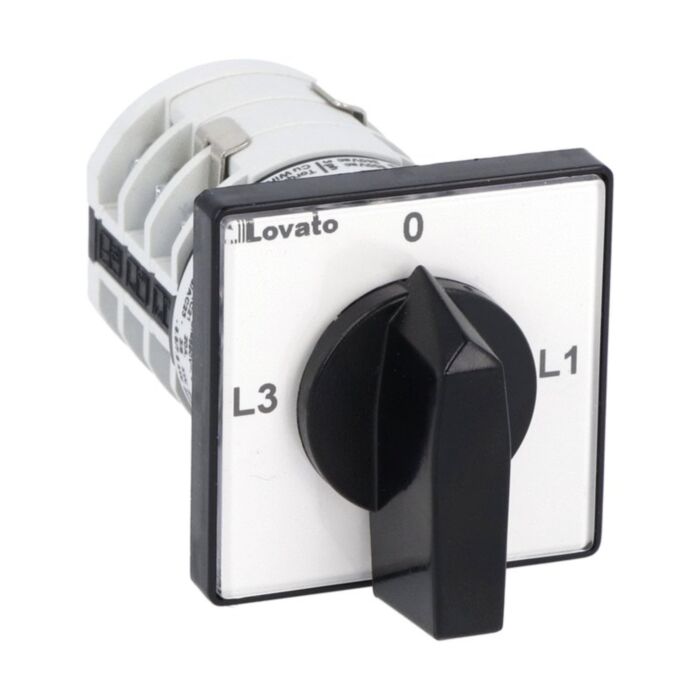

7GN2097U - AMMETER SWITCH GN2097U F/MOUNTING 48x48
MPN: 7GN2097U
Special Price
£40.86
£34.05
Regular Price
£68.10
Why Choose the 7GN2097U?
The Lovato 7GN2097U is a rotary cam ammeter switch from the 7GN series, designed for voltmeters and ammeters applications in control panels. Featuring mounting form U for front mounting with a black handle and a compact 48x48mm front plate, it offers dependable 20A Ith performance. The 97 ammeter switching diagram ensures straightforward measurement selection in industrial panels.
Built with the 7GN round-shaped contact block, this unit provides IP40 frontal protection and a rated impulse withstand voltage of 6 kV. It operates reliably from -25 to +55 °C and stores from -40 to +70 °C. Conformity to IEC/EN/BS 60947 parts, UL60947-4-1 and CSA C22.2 n° 14 supports safe integration into industrial switchboards and machine panels.
Key Benefits
- 20A Ith ammeter switching enhances reliability in measurement circuits.
- Front mounting with black handle streamlines panel installation.
- Compact 48X48mm front plate saves valuable fascia space.
- IP40 frontal protection suited to enclosed indoor control panels.
- 6 kV impulse withstand improves resistance to transient surges.
- Operates from -25 to +55 °C for diverse site conditions.
- 7GN round-shaped contact block ensures series compatibility.
- Complies with IEC/EN/BS 60947 for assured conformity.
Technical Specification
- Product type designation: 7GN20
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN2097U rotary cam ammeter switch unit
- Integrated black handle with 48X48mm front plate
- Manufacturer product datasheet (download link provided)
Applications
- Ammeter selection and measurement switching in control panels
- Industrial switchboards and distribution panels
- Machine control panels and OEM builds
- Maintenance, testing and panel refurbishment projects
Frequently Asked Questions
What is the current rating of the 7GN2097U?
The IEC conventional free air thermal current (Ith) is 20 A.
How is this switch mounted and operated?
It is mounting form U for front mounting and features a black handle.
What is the switching function provided?
It follows switching diagram 97, an ammeter switch for measurement selection.
What environmental and protection ratings apply?
It has IP40 frontal protection, operates from -25 to +55 °C, and stores from -40 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate all circuits before work and follow applicable IEC/EN/BS standards and site procedures.
| Manufacturer Part Number | 7GN2097U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144004672 |
