7GN2067U - VOLTMETER SELECTOR GN2067U P/P F/MNTG
MPN: 7GN2067U
Special Price
£24.85
£20.71
Regular Price
£41.42
Why Choose the 7GN2067U?

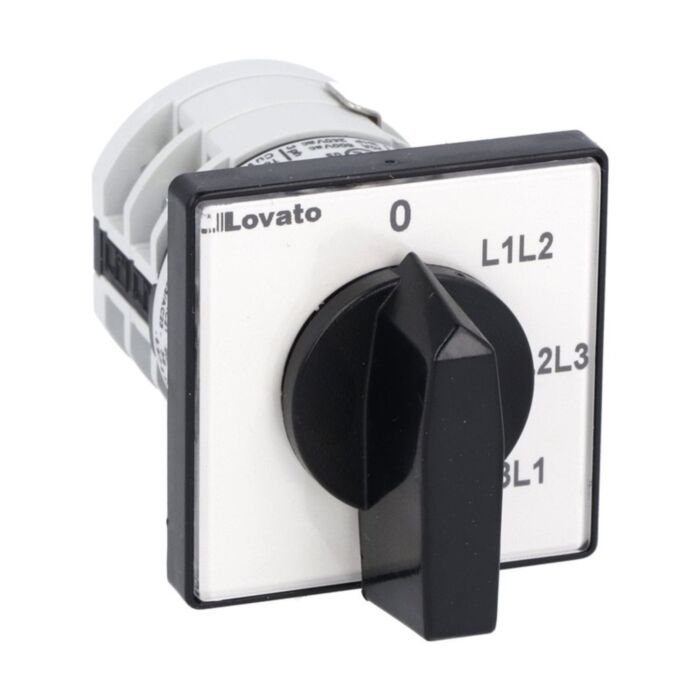

The Lovato 7GN2067U is a rotary cam voltmeter switch designed for phase-phase measurements in control panels. Part of the 7GN series, it delivers a 20A Ith rating and reliable front mounting (U) with a black handle for intuitive operation. The compact 48x48 mm front plate streamlines panel layouts for voltmeters and ammeters, providing clear selection and reliable operation in industrial environments where accurate line-to-line voltage indication is essential.
Engineered for reliability, the 7GN20 designation offers a rated impulse withstand voltage of 6 kV and IP40 frontal protection. It operates from -25 to +55 °C, with storage from -40 to +70 °C, supporting dependable service across varied sites. Conformity includes IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL and CSA references, supporting compliant voltmeter switch installations.
Key Benefits
- Accurate phase-phase selection using diagram 67 voltmeter switching.
- 20A Ith capacity for dependable panel integration.
- Front mounting (U) with black handle for quick, clear operation.
- Compact 48x48mm front plate to save valuable fascia space.
- IP40 frontal protection for reliable operator interface.
- Rated impulse withstand voltage 6 kV enhances insulation robustness.
- Operates -25 to +55 °C; stores -40 to +70 °C.
Technical Specification
- Product type designation: 7GN20
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN2067U voltmeter switch unit
- Integrated 48x48 mm front plate with black handle
- Product datasheet (downloadable)
- Basic installation and safety information
Applications
- Phase-to-phase voltage selection on industrial control panels
- Switchboards and distribution panels requiring voltmeter switching
- Generator sets and power monitoring cabinets
- Motor control centres and automation enclosures
- Test benches and maintenance bays measuring line voltages
Frequently Asked Questions
What is the current rating of the Lovato 7GN2067U?
The IEC conventional free air thermal current (Ith) is 20 A.
What switching function does it provide?
It follows diagram 67, a voltmeter switch for phase-phase voltages.
How is it mounted and what is the front size?
It is front mounted (U) with a black handle and a 48x48 mm front plate.
What are the protection and insulation ratings?
The frontal degree is IP40 and the rated impulse withstand voltage is 6 kV.
Which standards does it conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission by qualified personnel. Isolate all power before work, observe IP40 frontal limits, and operate within the specified temperature and electrical ratings.
| Manufacturer Part Number | 7GN2067U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144004689 |
