7GN2052U - 2P 3POS SWITCH GN2052U FRONT MOUNTING 48
MPN: 7GN2052U
Special Price
£24.85
£20.71
Regular Price
£41.42
Why Choose the 7GN2052U?

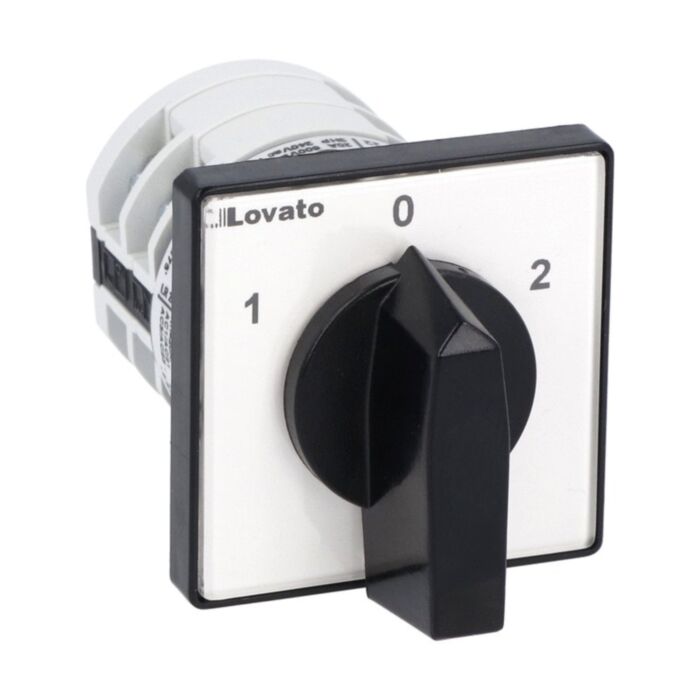

Lovato’s 7GN2052U is a rotary cam changeover switch designed for reliable two‑pole switching at 20 A. The compact 48 x 48 mm front plate and U-form front mounting with black handle simplify panel integration. With a 6 kV impulse withstand (Uimp) and IP40 frontal protection, it suits controlled environments. The 7GN series round-shaped contact block provides robust performance for panel builders seeking a precise, space-saving changeover solution.
Compliant with IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL and CSA standards, this industrial changeover switch (diagram 52) delivers assured performance within a -25 to +55 °C operating range. Product type designation 7GN20 confirms its place in Lovato’s 7GN family. Ideal where clear, positive 2-pole selection is required, it offers dependable operation for equipment supply selection and control circuits in panel-built systems.
Key Benefits
- Two-pole changeover function per diagram 52 for clear circuit selection.
- 20 A Ith rating supports reliable switching in control applications.
- Front mounting with black handle enables quick, accessible operation.
- Compact 48 x 48 mm front plate saves valuable panel space.
- IP40 frontal protection suited to enclosed, controlled environments.
- 6 kV impulse withstand voltage enhances electrical endurance.
- Wide -25 to +55 °C operating temperature range.
Technical Specification
- Product type designation: 7GN20
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN2052U rotary cam changeover switch
- Integrated black front-mounted handle
- 48 x 48 mm front plate
Applications
- Panel-mounted two-circuit changeover in industrial control cabinets
- Equipment supply selection and source switching duties
- Machine control interfaces requiring positive 2-pole switching
- OEM and panel builder projects using 48 x 48 mm front plate formats
- Maintenance and test panels needing compact rotary switchgear
Frequently Asked Questions
Is the 7GN2052U a 2-pole changeover switch?
Yes. It follows switching diagram 52—changeover switch 2 poles.
What is the current rating?
The IEC conventional free air thermal current (Ith) is 20 A.
How is it mounted and what handle does it use?
Mounting form U—front mounting with a black handle and a 48 x 48 mm front plate.
What protection and impulse levels does it offer?
The frontal degree of protection is IP40 and the rated impulse withstand voltage (Uimp) is 6 kV.
Which standards does it conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel, following applicable standards. Isolate power before work and operate within the specified ratings, IP40 frontal protection and temperature range.
| Manufacturer Part Number | 7GN2052U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003309 |
