7GN2010U11 - 3P 2POS SWITCH GN2010U11 FRONT MOUNTING
MPN: 7GN2010U11
Special Price
£29.45
£24.54
Regular Price
£49.08
Why Choose the 7GN2010U11?

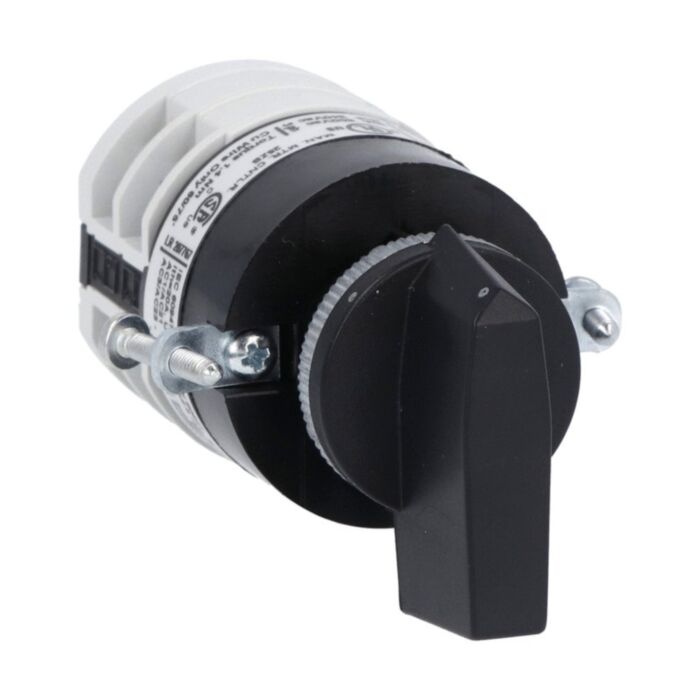

The Lovato 7GN2010U11 rotary cam ON/OFF switch delivers dependable 3-pole isolation for control and power circuits. Rated Ith 20 A and built on the 7GN round-shaped contact block, this compact unit suits front mounting in Ø22 mm panels. The U11 variant features a black handle and no front plate, streamlining installation and clear operator actuation.
Tested to IEC/EN/BS 60947 parts 1, 3 and 5-1, this ON/OFF switch offers 6 kV impulse withstand (Uimp) and IP40 frontal protection for protected-panel environments. Reliable performance is maintained from -25 to +55 °C, with storage down to -40 °C. A practical choice for OEMs and panel builders seeking a tidy, round operator with straightforward ON/OFF function and consistent Lovato build quality.
Key Benefits
- 3-pole ON/OFF switching per diagram 10 for confident isolation.
- 20 A Ith rating supports robust general-purpose control duties.
- U11 front mounting fits standard Ø22 mm panel cut-outs.
- Black handle without front plate ensures simple, clear operation.
- IP40 frontal protection suited to enclosed industrial panels.
- 6 kV impulse withstand improves resistance to transient surges.
- Operates from -25 to +55 °C for varied site conditions.
Technical Specification
- Product type designation: 7GN20
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN2010U11 rotary cam ON/OFF switch, factory-assembled
- Black handle integrated on front operator
- Panel fixing hardware for Ø22 mm mounting
- Basic installation and safety information
Applications
- Machine ON/OFF control and isolation in enclosed panels
- OEM equipment where compact 3-pole switching is required
- Control and distribution panels with Ø22 mm operator interface
- Test rigs and maintenance stations needing simple power switching
Frequently Asked Questions
What is the switching function and pole configuration?
It is a 3-pole ON/OFF switch per switching diagram 10.
What panel cut-out and mounting style does it use?
It mounts from the front using U11, for Ø22 mm panel fixing.
What is the thermal current rating?
The IEC conventional free air thermal current (Ith) is 20 A.
What is its frontal protection rating?
The frontal degree of protection is IP40.
What temperature range can it operate in?
The operating temperature range is -25 to +55 °C, with storage -40 to +70 °C.
Safety note: Install and commission only by qualified personnel. Isolate power before work and observe IEC/EN/BS 60947 and site safety procedures; IP40 frontal protection is intended for protected indoor panels.
| Manufacturer Part Number | 7GN2010U11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144004429 |
