7GN2010U - 3P 2POS SWITCH GN2010U 48X48 FRONT MOUNT
MPN: 7GN2010U
Special Price
£22.25
£18.54
Regular Price
£37.09
Why Choose the 7GN2010U?

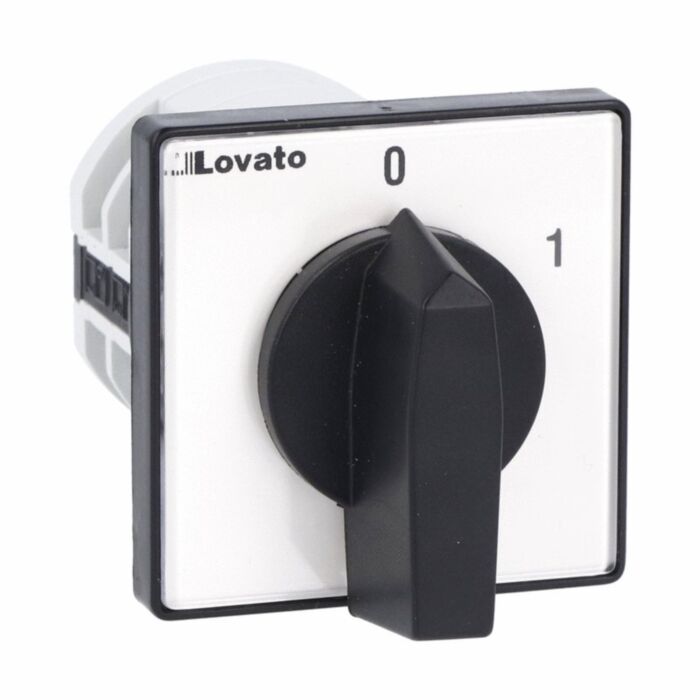

The Lovato 7GN2010U is a rotary cam ON/OFF switch from the 7GN series, configured as a 3‑pole 20A device for reliable control. Designed for front mounting with a black handle and a 48x48mm front plate, it integrates cleanly into control panels. With switching diagram 10, this round-shaped contact block provides straightforward ON/OFF functionality in compact spaces and panel-front applications.
Engineered to recognised standards, the 7GN20 designation delivers 6 kV rated impulse withstand (Uimp) and IP40 frontal protection. Operating from -25 to +55 °C, with storage from -40 to +70 °C, it suits protected indoor environments. Ideal for machinery and process equipment where dependable 3-pole ON/OFF action, neat 48x48mm presentation and simple front mounting are required.
Key Benefits
- 3-pole ON/OFF switching per diagram 10 for straightforward control.
- Rated 20A Ith for dependable performance in free air.
- Front mounting U form with black handle for ergonomic operation.
- 48x48mm front plate suits common panel formats.
- IP40 frontal protection suits protected indoor control panels.
- 6 kV impulse withstand (Uimp) enhances transient robustness.
- Wide operating temperature range, -25 to +55 °C.
Technical Specification
- Product type designation: 7GN20
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN2010U rotary cam ON/OFF switch assembly
- 48x48mm front plate with black handle fitted
- Panel front-mounting hardware
- Basic installation and safety information
Applications
- Machine and process control panels requiring clear ON/OFF actuation.
- General industrial equipment needing 3-pole 20A switching.
- Power and control cabinets with front-mounted operator interfaces.
- Building services and HVAC plant rooms within IP40-protected enclosures.
- OEM panel building using 48x48mm front plate formats.
Frequently Asked Questions
Is the 7GN2010U a 3-pole switch?
Yes, it follows switching diagram 10 as a 3-pole ON/OFF switch.
What current can this switch handle?
It has an IEC conventional free air thermal current Ith of 20 A.
How is it mounted and operated?
Mounting form U denotes front mounting with a black handle for actuation.
What is the frontal IP rating?
The front of the device is rated IP40.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Always isolate power before work, observe the stated operating limits, and follow applicable standards and the manufacturer’s instructions.
| Manufacturer Part Number | 7GN2010U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002401 |
