7GN2010P - 3P 2POS SWITCH GN2010P C/W HOUSING

Why Choose the 7GN2010P?

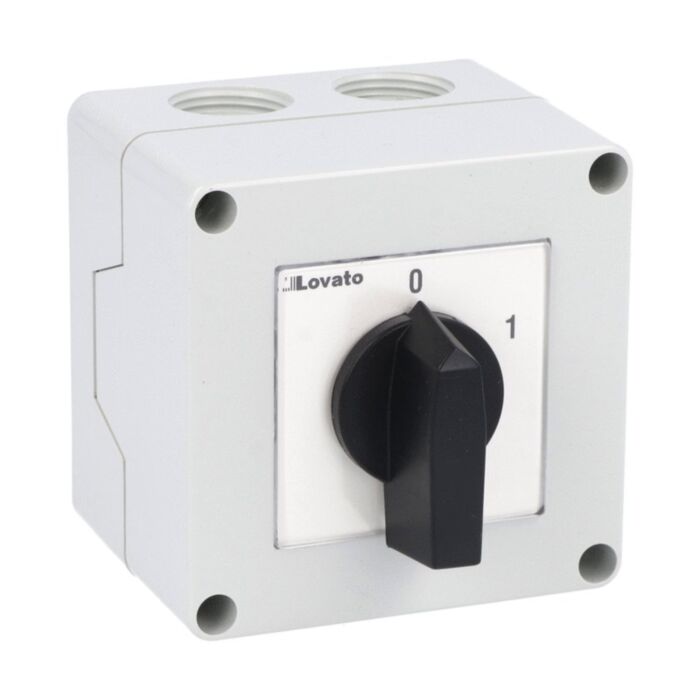

Designed for reliable manual isolation, the Lovato 7GN2010P is an enclosed rotary cam ON/OFF switch built for clean, simple control. This 3‑pole, 20 A device comes in a compact 75×75 mm plastic enclosure with a black handle and round-shaped 7GN contact block. Rated IP65 at the front, it offers 6 kV impulse withstand and dependable operation from −25 to +55 °C, meeting IEC/EN/BS 60947 requirements.

With mounting form P (plastic enclosure with black handle) and product type designation 7GN20, this unit integrates easily into control panels and general machinery ON/OFF duties. The 3-pole switching diagram 10 provides straightforward make/break functionality, backed by compliance to IEC/EN/BS 60947-1, -3 and -5-1. A robust choice for British industrial environments, it balances durability and size for dependable service and streamlined installation.

Key Benefits

• 3-pole ON/OFF switching with diagram 10 for clear, simple isolation tasks.
• 20 A Ith rating supports dependable control of suitably rated loads.
• IP65 frontal protection helps resist dust and water ingress at the interface.
• Compact 75×75 mm plastic enclosure saves panel space during mounting.
• 6 kV rated impulse withstand enhances resilience to transient overvoltages.
• Operates from −25 to +55 °C for varied ambient conditions.
• Compliant with IEC/EN/BS 60947-1, -3, -5-1 for assured conformity.

Technical Specification

• Product type designation: 7GN20
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• Lovato 7GN2010P enclosed rotary cam ON/OFF switch
• Pre-mounted plastic enclosure with black handle
• Installation and safety instructions
• Product data sheet (digital access)

Applications

• Main ON/OFF control for machinery and equipment
• Panel-mounted isolation for industrial control circuits
• Power switching in general-purpose control enclosures
• Local start/stop duty where 3-pole switching is required

Safety note: Installation and commissioning must be performed by qualified personnel. Isolate the supply before work, verify ratings against the application, and note that IP65 applies to the front only.
