7GN2010O88 - 3P 2POS SWITCH GN2010O88 REAR MNTG DOOR

Why Choose the 7GN2010O88?

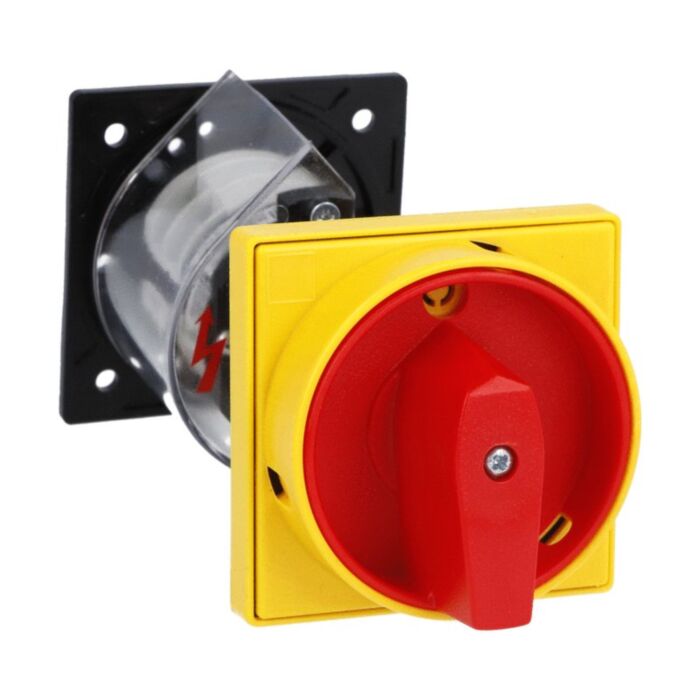

Lovato’s 7GN2010O88 rotary cam switch delivers reliable ON/OFF control in demanding panels. This 7GN series unit features a 3‑pole switching diagram (10) with an IEC conventional free‑air thermal current Ith of 20 A. Designed for rear mounting (O88), it includes a red/yellow handle padlockable in 0, door coupling, protection covers and a 65 x 65 mm front plate for a clean, consistent fascia.

Tested performance includes a 6 kV rated impulse withstand voltage and IP40 frontal protection. The switch operates from -25 to +55 °C and stores from -40 to +70 °C. Built on the round-shaped 7GN contact block, it conforms to IEC/EN/BS 60947-1/-3/-5-1 and is referenced by UL60947-4-1 and CSA C22.2 n° 14, supporting consistent specification across international projects.

Key Benefits

• 3-pole ON/OFF switching with 20 A Ith for dependable control.
• Rear mounting O88 with door coupling streamlines panel integration.
• Red/yellow handle padlockable in 0 enhances lockout and safety.
• IP40 frontal protection for reliable operation in enclosed installations.
• 6 kV impulse withstand voltage supports robust dielectric performance.
• -25 to +55 °C operating range suits varied ambient conditions.
• 65 x 65 mm front plate delivers a neat, consistent fascia.
• Conforms to IEC/EN/BS 60947 with UL and CSA references.

Technical Specification

• Product type designation: 7GN20
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP40

What’s Included

• Rotary cam switch 7GN assembly
• Red/yellow handle padlockable in 0
• Door coupling
• Protection covers
• 65 x 65 mm front plate

Applications

• Control panels requiring three-pole ON/OFF switching up to 20 A
• Industrial enclosures with rear-mounted, door-coupled operators
• Equipment needing padlockable OFF position for maintenance procedures
• General-purpose switching built to IEC/EN/BS 60947 standards

Safety note: Install and service only when de-energised and by qualified personnel. Use the padlockable 0 position during maintenance and observe applicable IEC/EN/BS 60947 and local regulations.
