7GN1298U - L1-L2-L3 AMMETER SWITCH GN1298U 48X48 FR
MPN: 7GN1298U
Special Price
£25.90
£21.58
Regular Price
£43.15
Why Choose the 7GN1298U?

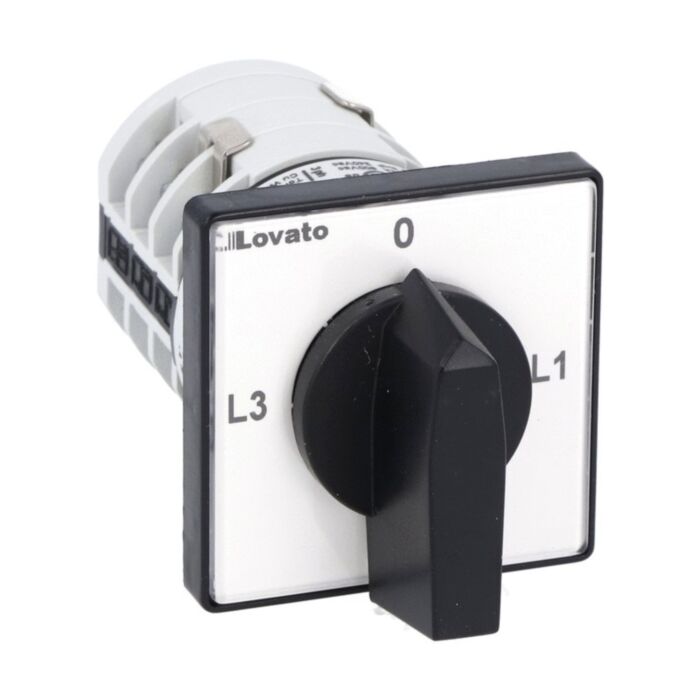

Lovato 7GN1298U is a rotary cam ammeter switch within the Voltmeters and ammeters category, built for precise measurement selection in panel applications. Part of the 7GN series with a round-shaped contact block, it features Switching diagram 98 for ammeter circuits. The U mounting form enables front mounting with a black handle and a compact 48X48mm front plate.
Engineered for reliability, the device offers an IEC conventional free air thermal current (Ith) of 16 A and a rated impulse withstand voltage (Uimp) of 6 kV. The frontal protection is IP40, with an operating temperature from -25 to +55 °C. It conforms to IEC/EN/BS 60947-1, -3, -5-1, UL60947-4-1 and CSA C22.2 n° 14.
Key Benefits
- Ammeter switch with diagram 98 for clear measurement circuit selection.
- Front mounting with black handle for straightforward panel operation.
- 48X48mm front plate supports compact, space-efficient layouts.
- 16 A IEC Ith rating for robust instrumentation circuits.
- IP40 frontal protection for protected cabinet environments.
- 6 kV impulse withstand voltage enhances transient immunity.
- Operates from -25 to +55 °C across varied ambient conditions.
- 7GN round-shaped contact block design within the series.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1298U rotary cam ammeter switch
- Black operator handle for front mounting
- Panel mounting accessories
- Product documentation
Applications
- Ammeter switching and measurement selection in control panels
- Panel-mounted instrumentation for industrial equipment
- Switching between multiple current measurement points
- Electrical distribution and monitoring cabinets
Frequently Asked Questions
What is the current rating of the 7GN1298U?
It has an IEC conventional free air thermal current (Ith) of 16 A.
How is the 7GN1298U mounted on a panel?
It uses Mounting form U for front mounting with a black handle.
What is the front protection rating?
The frontal protection degree is IP40.
What is the operating temperature range?
It operates from -25 to +55 °C.
Which standards does this product conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Always isolate power before work and follow applicable IEC/EN/BS 60947 practices and local regulations; ensure enclosure protection aligns with the IP40 frontal rating.
| Manufacturer Part Number | 7GN1298U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002388 |
