7GN1292U11 - 4P 2POS SWITCH GN1292U11 FRONT MOUNTING
MPN: 7GN1292U11
Special Price
£27.92
£23.27
Regular Price
£46.55
Why Choose the 7GN1292U11?

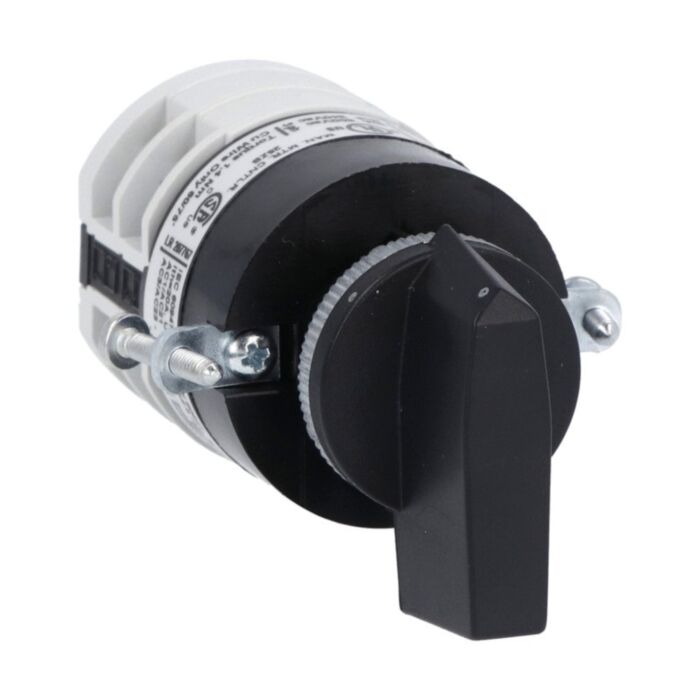

The Lovato 7GN1292U11 rotary cam ON/OFF switch delivers dependable manual control for compact panels. Part of the 7GN round-shaped contact block series, this 4‑pole unit is rated at 16 A Ith and suits front mounting with a black handle. Designed for Ø22 mm fixing without a front plate, the SKU 7GN1292U11 provides clear, positive switching for equipment builders and maintenance teams.
Built for industrial environments, it offers 6 kV rated impulse withstand voltage and IP40 front protection to safeguard against incidental contact. Operating reliably from −25 to +55 °C, and storing to −40 to +70 °C, it conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14 for assured compliance in UK control panels and machinery.
Key Benefits
- Simultaneous 4-pole ON/OFF switching in a single compact device.
- 16 A Ith rating ensures reliable general-purpose performance.
- Front mounting with black handle suits Ø22 mm panel holes.
- IP40 front protection enhances operator safety at the panel.
- 6 kV impulse withstand delivers strong dielectric endurance.
- Operates from −25 to +55 °C for varied site conditions.
- Conforms to IEC/EN/BS, UL and CSA standards for compliance.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1292U11 rotary cam ON/OFF switch, 4-pole, 16 A
- Black front-mount handle for Ø22 mm fixing
Applications
- Control panels requiring reliable manual ON/OFF switching
- OEM machinery and equipment power switching
- Multi-pole circuit switching in industrial enclosures
- Maintenance replacements for 22 mm panel cut-outs
- Building services and small machinery control stations
Frequently Asked Questions
What does the SKU 7GN1292U11 specify?
A Lovato 7GN series rotary cam ON/OFF switch, 4 poles, 16 A Ith, for Ø22 mm front mounting with a black handle.
Does this switch include a front plate?
No. The mounting form U11 is supplied without a front plate.
What panel cut-out size is required?
A 22 mm diameter hole is required for fixing.
What is the thermal current rating (Ith)?
The IEC conventional free air thermal current Ith is 16 A.
Which standards does it conform to?
IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by competent personnel. Isolate all power, verify compatibility with IP40 frontal protection, and follow the applicable IEC/EN/BS 60947 standards during mounting and wiring.
| Manufacturer Part Number | 7GN1292U11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144004054 |
