7GN1292O88 - 4 POLE 2 POS. CONTROL SWITCH GN1292088

Why Choose the 7GN1292O88?

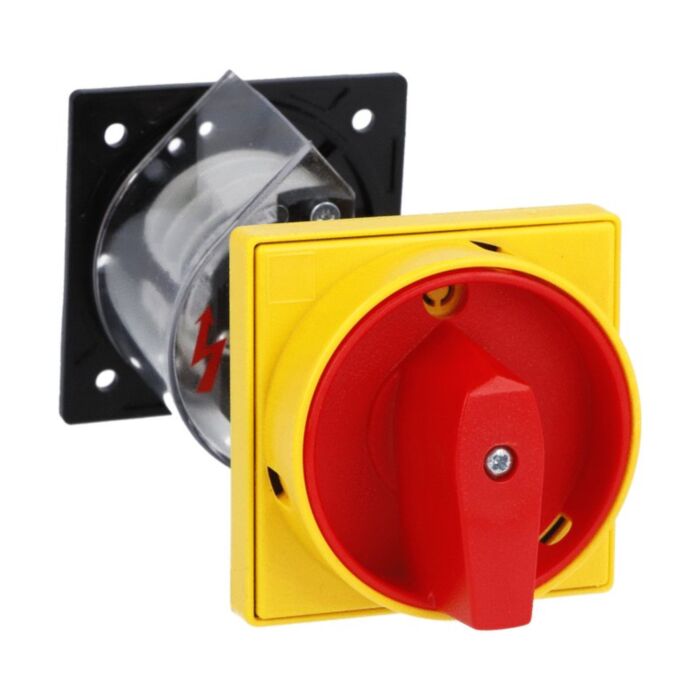

Lovato 7GN1292O88 is a rotary cam switch from the 7GN series, designed as an ON/OFF switch for reliable multi‑pole isolation. It delivers four-pole, 16 A switching with O88 rear mounting, a red/yellow handle padlockable in 0, door coupling, and protection covers. The 65 x 65 mm front plate provides a clean, consistent fascia for panel installations.

Engineered for demanding environments, the switch offers a 6 kV impulse withstand rating and IP40 frontal protection, operating from -25 to +55 °C. The 7GN round-shaped contact block architecture supports dependable ON/OFF operation. Compliance with IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL and CSA standards, streamlines specification for UK and global panels.

Key Benefits

• Four-pole ON/OFF switching for reliable isolation and control at 16 A.
• Rear mounting with door coupling simplifies panel assembly and maintenance.
• Red/yellow handle padlockable in 0 enhances lockout/tagout safety procedures.
• IP40 frontal protection for dependable operation in enclosed panels.
• 6 kV impulse withstand rating improves resilience against transient overvoltage.
• Wide operating temperature range from -25 to +55 °C suits harsh environments.
• Compliant with IEC/EN/BS and UL/CSA standards for assured global conformity.

Technical Specification

• Product type designation: 7GN12
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP40

What’s Included

• Rotary cam switch 7GN assembly
• Red/yellow handle (padlockable in 0)
• Door coupling mechanism
• Protection covers
• 65 x 65 mm front plate

Applications

• Industrial control panels requiring four-pole ON/OFF isolation
• Machinery and equipment on/off control with panel door coupling
• Motor control circuits needing 16 A multi-pole switching
• Power distribution sub-panels within enclosures with IP40 front
• HVAC and building services switchboards using padlockable handles

Safety note: Install and commission only by qualified personnel. Isolate all power before work, padlock the handle in 0 to prevent operation, and adhere to the stated standards and ratings.
