7GN1290U12 - 1P 2POS SWITCH GN1290U12 FRONT MOUNTING
MPN: 7GN1290U12
Special Price
£28.25
£23.54
Regular Price
£47.08
Why Choose the 7GN1290U12?

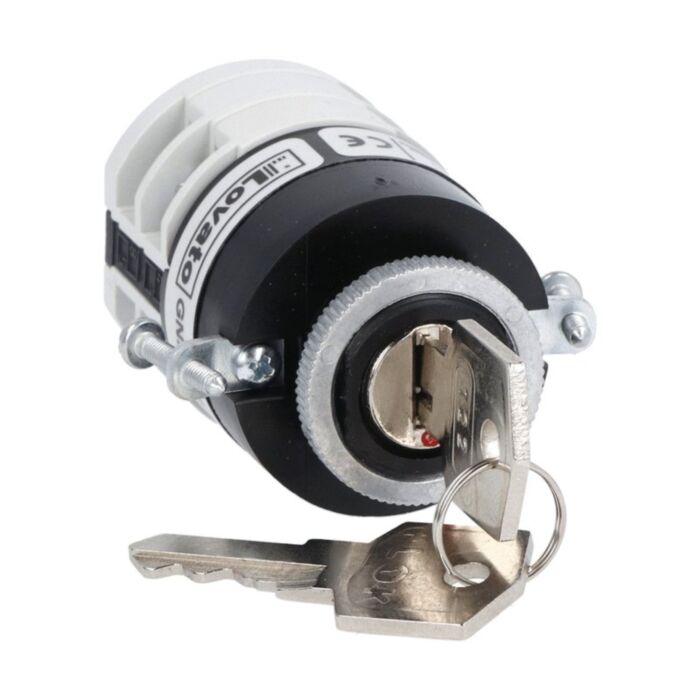

The Lovato 7GN1290U12 rotary cam ON/OFF switch delivers dependable single‑pole 16 A control with key operation. Designed for front mounting without a front plate, it fits a Ø22 mm panel cut‑out using the U12 mounting form. Part of the 7GN series round-shaped contact block range, it provides a compact operator solution for control panels where authorised switching and clear ON/OFF functionality are essential.
Engineered for industrial environments, this switch offers a 6 kV rated impulse withstand voltage and an IP40 frontal rating. It operates from -25 to +55 °C and stores from -40 to +70 °C. Conformity to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, underpins reliable performance across panels using Ø22 mm devices.
Key Benefits
- Single-pole 16 A switching for straightforward ON/OFF control.
- Key-operated actuator helps deter unauthorised or accidental operation.
- U12 front mounting suits Ø22 mm panel holes; no front plate required.
- IP40 frontal protection for enclosed control panels and operator stations.
- 6 kV impulse withstand enhances robustness against transient overvoltages.
- Reliable performance from -25 to +55 °C operating temperature range.
- Complies with IEC/EN/BS, UL, and CSA standards for global acceptance.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1290U12 key-operated rotary cam switch
- Basic installation and safety instructions
- Manufacturer datasheet (downloadable)
- Protective packaging
Applications
- Panel-mounted ON/OFF control for single-pole circuits up to 16 A
- Equipment requiring key-operated access to switching functions
- Control panels and operator stations using Ø22 mm devices
- General-purpose power switching within industrial or commercial enclosures
Frequently Asked Questions
What is the switching diagram for this model?
It uses diagram 90—an ON/OFF switch, 1 pole.
What mounting and panel hole size does it require?
U12 front mounting without a front plate, key operation, for a Ø22 mm hole.
What is the current rating of the switch?
The IEC conventional free air thermal current (Ith) is 16 A.
What environmental and protection ratings apply?
Operating -25 to +55 °C, storage -40 to +70 °C, with IP40 frontal protection.
Which standards does it conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel in accordance with applicable standards. Always isolate and verify circuits are de-energised before mounting or servicing; ensure the IP40 frontal rating is suitable for the environment.
| Manufacturer Part Number | 7GN1290U12 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002821 |
