7GN1290U11 - 1P 2POS SWITCH GN1290U11 FRONT MOUNTING
MPN: 7GN1290U11
Special Price
£20.57
£17.14
Regular Price
£34.27
Why Choose the 7GN1290U11?

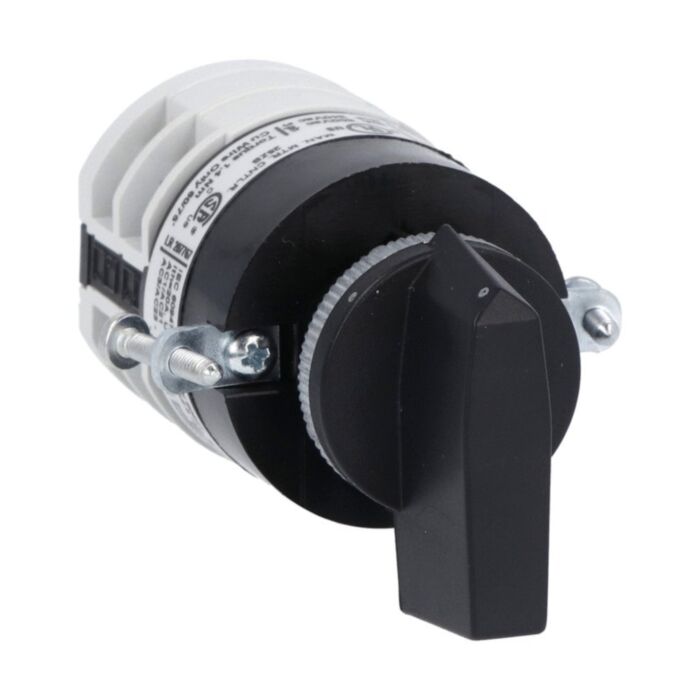

The Lovato 7GN1290U11 rotary cam ON/OFF switch delivers dependable 1‑pole switching at 16A Ith for panel builders and maintenance teams. Designed for front mounting through a Ø22mm hole, it features a black handle and round-shaped 7GN contact block. With IP40 frontal rating and 6 kV impulse withstand, this compact switch suits control panels requiring clear ON/OFF actuation and straightforward installation.
Engineered to IEC/EN/BS 60947 standards and UL/CSA listings, the 7GN12 designation with U11 mounting form provides reliable performance across -25 to +55 °C operation and -40 to +70 °C storage. The 90 switching diagram defines a true ON/OFF 1-pole function, enabling simple isolation of control circuits. Choose this Lovato ON/OFF switch for consistent, panel-ready integration in space-limited enclosures.
Key Benefits
- Front mounting through Ø22mm panel hole for quick, secure installation.
- 1-pole ON/OFF function per diagram 90 for simple circuit isolation.
- 16 A Ith rating supports a broad range of control duties.
- IP40 frontal rating provides defined front-side protection.
- Rated impulse withstand voltage Uimp 6 kV for dielectric robustness.
- Operates from -25 to +55 °C to suit varied ambient conditions.
- U11 mounting form with black handle ensures clear front operation.
- 7GN round-shaped contact block series for consistent panel integration.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- 7GN rotary cam ON/OFF switch, 1-pole, 16A Ith
- Pre-fitted black handle for front operation
- Panel fixing nut for Ø22mm mounting
- Installation leaflet
Applications
- Panel-mounted ON/OFF control for control circuits
- General industrial equipment start/stop switching
- Integration into compact control panels and enclosures
- Auxiliary circuit isolation and maintenance operations
Frequently Asked Questions
What panel cut-out size and mounting style does this switch require?
It uses U11 front mounting through a Ø22mm hole and comes with a black handle.
What is the switching function of this device?
It follows diagram 90, providing a true 1-pole ON/OFF switching function.
What is the current rating of the switch?
It has an IEC conventional free air thermal current Ith of 16 A.
What is the IP rating and impulse withstand capability?
The frontal rating is IP40 and the rated impulse withstand voltage Uimp is 6 kV.
Does it include a front plate?
No. The U11 version is supplied without a front plate by design.
Safety note: Install and operate only by a competent person. Isolate power before work, use within the stated ratings and temperature ranges, and ensure IP40 frontal protection is suitable for the enclosure environment.
| Manufacturer Part Number | 7GN1290U11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002838 |
