7GN1290U - 1P 2POS SWITCH GN1290U FRONT MOUNTING 48
MPN: 7GN1290U
Special Price
£13.36
£11.13
Regular Price
£22.26
Why Choose the 7GN1290U?

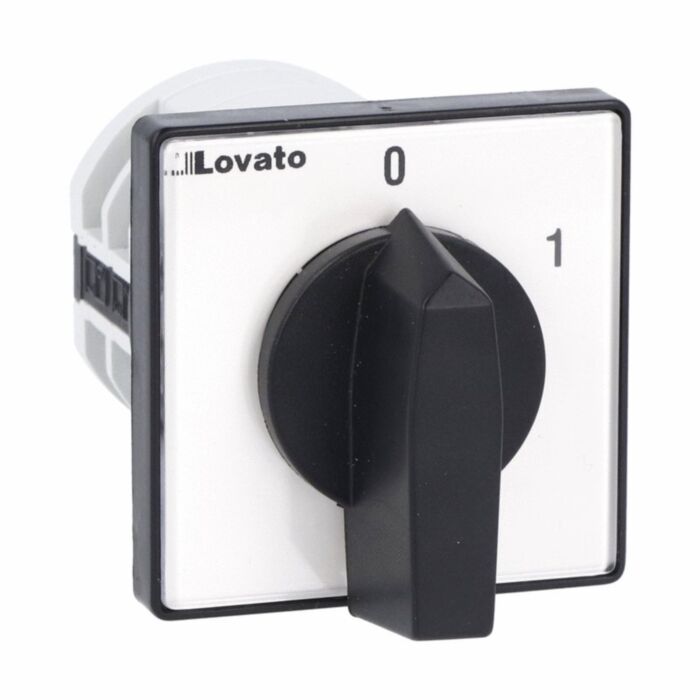

Lovato’s 7GN1290U rotary cam switch provides reliable ON/OFF control in a compact 48x48 mm format. Part of the 7GN series, it uses switching diagram 90 for 1‑pole operation and offers a conventional free air thermal current Ith of 16 A. The U-form front mounting with black handle ensures clear actuation and straightforward panel assembly for industrial and building services control tasks.
With an IP40 frontal degree, a rated impulse withstand voltage Uimp of 6 kV, and an operating temperature range of −25 to +55 °C, this ON/OFF switch is built for dependable daily service. Product type designation 7GN12, it conforms to IEC/EN/BS 60947-1/-3/-5-1 and UL60947-4-1 and CSA C22.2 n° 14 for international compatibility.
Key Benefits
- Compact 48x48 mm front plate saves panel space and simplifies layout.
- 1‑pole ON/OFF switching (diagram 90) for straightforward, reliable circuit control.
- 16 A Ith rating supports robust control duties in varied applications.
- U-form front mounting with black handle for quick, secure installation.
- IP40 frontal protection suitable for standard indoor industrial environments.
- Rated impulse withstand voltage Uimp 6 kV enhances switching resilience.
- Operates from −25 to +55 °C for consistent performance.
- Part of Lovato 7GN series with round-shaped contact block.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1290U rotary cam ON/OFF switch
- Integrated black handle with 48x48 mm front plate
- Manufacturer's standard mounting hardware (as supplied)
Applications
- Panel ON/OFF control for machinery and equipment
- Control circuits for pumps, fans, and HVAC auxiliaries
- General-purpose power switching within control panels
- Switching of small auxiliaries where 1‑pole control is required
- Operator panels requiring a compact 48x48 mm switch footprint
Frequently Asked Questions
What current can the 7GN1290U handle?
It has an IEC conventional free air thermal current Ith of 16 A.
How is this switch mounted?
It uses U-form front mounting and includes a black handle with a 48x48 mm front plate.
What is the pole configuration and switching diagram?
It is a 1‑pole ON/OFF switch with switching diagram 90.
What protection and temperature ratings apply?
The frontal degree is IP40, with an operating range of −25 to +55 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, -3, -5-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Installation and wiring should be performed by qualified personnel. Isolate power before work, observe the stated ratings and temperature limits, and consider the IP40 frontal protection when selecting the operating environment.
| Manufacturer Part Number | 7GN1290U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002364 |
