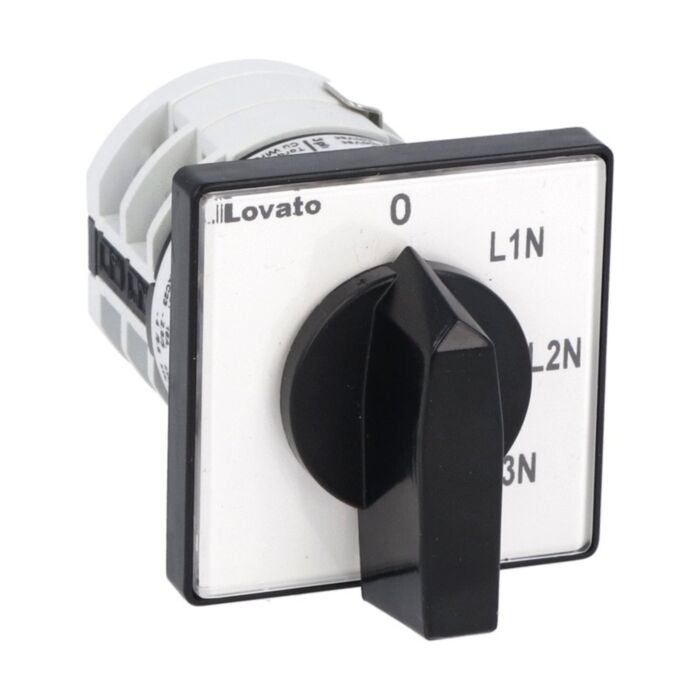

7GN1268U - VOLTMETER SWITCH GN1268U P/N FRONT MOUNT
MPN: 7GN1268U
Special Price
£20.72
£17.27
Regular Price
£34.54
Why Choose the 7GN1268U?
Engineered for precise phase‑to‑neutral measurement, the Lovato 7GN1268U rotary cam voltmeter switch delivers dependable panel instrumentation. From the 7GN series with a round‑shaped contact block, it features a compact 48×48 mm front plate and black handle for neat front mounting. With an IEC conventional free‑air thermal current Ith of 16 A and a rated impulse withstand voltage Uimp of 6 kV, it ensures robust performance for voltmeter switching duties.
Mounting form U enables straightforward front installation and clear operation via the black handle. Rated IP40 at the front and suitable for -25 to +55 °C operation, it also offers -40 to +70 °C storage resilience. Conforming to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14, switching diagram 68 defines its phase‑neutral voltmeter function within Lovato’s Voltmeters and ammeters range.
Key Benefits
- Dedicated phase‑neutral voltmeter switching (diagram 68) for accurate measurements.
- 16 A Ith rating supports reliable instrument circuit performance.
- Compact 48×48 mm front plate saves valuable panel space.
- Front mounting with black handle for fast, tidy installation.
- 6 kV impulse withstand enhances insulation and overvoltage resilience.
- IP40 frontal protection suitable for enclosed control panels.
- Wide operating temperature range from -25 to +55 °C.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1268U rotary cam voltmeter switch
- Black handle with 48 × 48 mm front plate (pre‑assembled)
- Panel mounting hardware
- Installation leaflet / datasheet
Applications
- Phase‑to‑neutral voltmeter selection in three‑phase distribution panels
- Industrial control panels and switchboards instrumentation
- OEM machine control and electrical test benches
- Energy monitoring and facility maintenance panels
Frequently Asked Questions
What does switching diagram 68 indicate?
It defines a voltmeter switch for phase‑neutral voltage measurement.
Is the 7GN1268U suitable for front mounting?
Yes. Mounting form U is for front mounting with a black handle.
What is the current rating of this switch?
The IEC conventional free‑air thermal current Ith is 16 A.
What environmental ratings does it have?
The frontal degree of protection is IP40, with -25 to +55 °C operating temperature.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and service only by qualified personnel. Isolate all power sources before mounting or maintenance, and follow applicable standards and the manufacturer’s instructions.
| Manufacturer Part Number | 7GN1268U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003217 |
