7GN1267U - VOLTMETER PH/PH SWITCH FRONT MOUNTING 48
MPN: 7GN1267U
Special Price
£20.72
£17.27
Regular Price
£34.54
Why Choose the 7GN1267U?

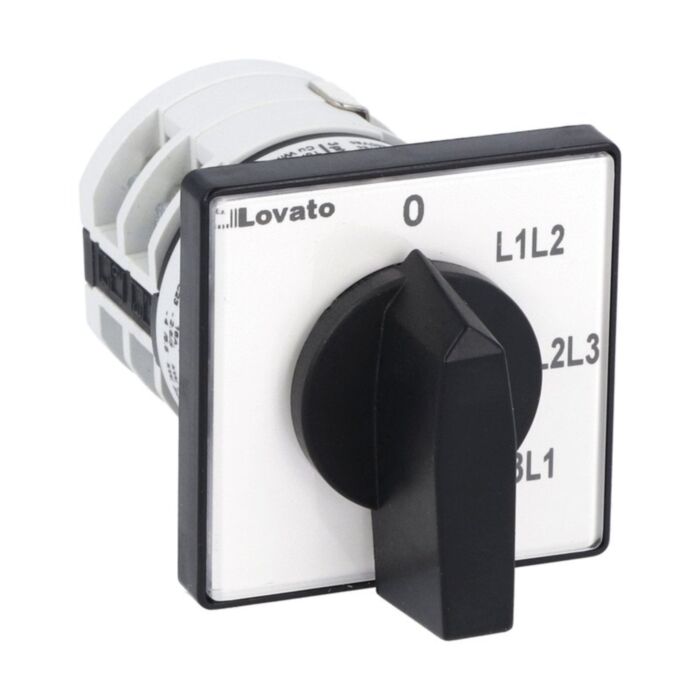

The Lovato 7GN1267U is a rotary cam voltmeter switch for phase‑phase voltage selection within Voltmeters and ammeters applications. Part of the 7GN series with a round-shaped contact block, it offers 16A Ith and secure U front mounting with a black handle. The compact 48x48mm front plate simplifies panel cut-outs and labelling. This SKU 7GN1267U provides reliable, space‑efficient integration for clear phase-to-phase monitoring.
Engineered for durability, the 7GN12 designation withstands 6 kV impulse surges and operates from -25 to +55 °C (storage -40 to +70 °C). The IP40 frontal rating suits protected indoor enclosures. Built to IEC/EN/BS 60947-1/-3/-5-1 and recognised by UL and CSA references, it supports consistent performance in industrial control panels, switchboards and maintenance stations.
Key Benefits
- Purpose-built for phase‑phase voltages per switching diagram 67.
- 16 A Ith capacity supports robust panel applications.
- U front mounting with pre-fitted black handle.
- Compact 48x48 mm front plate saves valuable panel space.
- 6 kV impulse withstand for enhanced insulation coordination.
- IP40 frontal protection for protected indoor enclosures.
- Reliable operation from -25 to +55 °C ambient.
- Conforms to IEC/EN/BS 60947 series with UL and CSA references.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1267U rotary cam voltmeter switch unit
- 48x48 mm front plate with black handle (pre-fitted)
- Manufacturer’s documentation (datasheet reference)
- Product identification label with SKU
Applications
- Industrial control panels and switchboards
- Motor control centres and distribution cabinets
- Maintenance and commissioning test benches
- Generator and power monitoring panels
Frequently Asked Questions
What is the Lovato 7GN1267U?
It is a rotary cam voltmeter switch for phase‑phase voltages, part of Lovato’s 7GN series.
How is it mounted and what are the front dimensions and protection?
It uses U front mounting with a black handle and a 48x48mm front plate, with IP40 frontal protection.
What are its key electrical ratings?
The device has an IEC conventional free air thermal current Ith of 16 A and a rated impulse withstand voltage Uimp of 6 kV.
What are the operating and storage temperatures?
Operating temperature is -25 to +55 °C, with storage from -40 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, and references UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission the switch only by qualified personnel. Isolate all power sources before work, follow applicable standards, and note the IP40 frontal rating is intended for protected indoor environments.
| Manufacturer Part Number | 7GN1267U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002357 |
