7GN12592U - 4 POLE 2 POS. CONTROL SWITCH FRONT MOUNT
MPN: 7GN12592U
Special Price
£228.94
£190.78
Regular Price
£381.55
Why Choose the 7GN12592U?

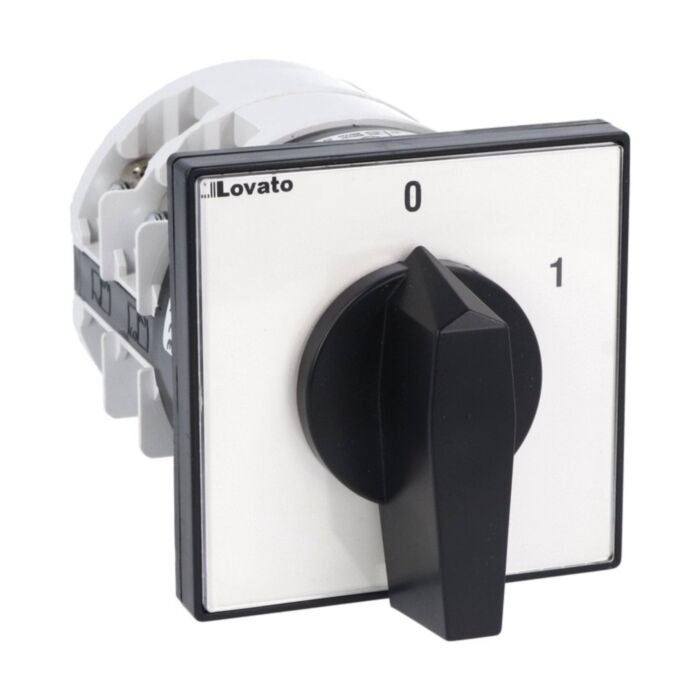

Engineered for reliable isolation, the Lovato 7GN12592U rotary cam ON/OFF switch delivers 4-pole control at 125 A Ith. Designed for front mounting (U) with a black handle and a 90 x 90 mm front plate, it suits compact panels. Part of the 7GN series with a round-shaped contact block, it offers straightforward ON/OFF switching per diagram 92 for dependable service in industrial and commercial control assemblies.
Built to perform in demanding environments, the switch provides IP40 frontal protection and a rated impulse withstand voltage Uimp of 6 kV. Operating temperature spans -25 to +55 °C (storage -40 to +70 °C). It conforms to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, supporting safe, consistent panel integration.
Key Benefits
- 4-pole ON/OFF switching per diagram 92 for clear isolation.
- 125 A Ith rating supports robust power circuits.
- Front mounting (U) with black handle simplifies panel operation.
- 90 x 90 mm front plate for straightforward front installation.
- IP40 frontal protection for basic ingress defence.
- 6 kV rated impulse withstand voltage enhances transient resilience.
- Operates from -25 to +55 °C for reliable service ranges.
- 7GN series round-shaped contact block for compact assembly.
Technical Specification
- Product type designation: 7GN125
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN series rotary cam ON/OFF switch, 4-pole, 125 A
- Pre-fitted black handle and 90 x 90 mm front plate
- Mounting and user information leaflet
Applications
- Main ON/OFF isolation in industrial control panels
- Power distribution and switchboard on/off control
- Machinery and equipment power disconnection
- Multi-pole circuit isolation in commercial installations
Frequently Asked Questions
What is the current rating of the 7GN12592U?
It has an IEC conventional free air thermal current Ith of 125 A.
How is this switch mounted?
Mounting form U for front mounting, supplied with a black handle and 90 x 90 mm front plate.
What is the frontal IP rating?
The frontal degree of protection is IP40.
What temperatures can it operate within?
Operating temperature is -25 to +55 °C; storage is -40 to +70 °C.
Which standards does it conform to?
IEC/EN/BS 60947-1, IEC/EN/BS 60947-3, IEC/EN/BS 60947-5-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Install and commission only by competent personnel in accordance with applicable standards. De-energise and isolate all circuits before mounting or service.
| Manufacturer Part Number | 7GN12592U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003613 |
