7GN1256U - 3P 2POS SWITCH GN1256U 48X48 FRONT MOUNT

Why Choose the 7GN1256U?

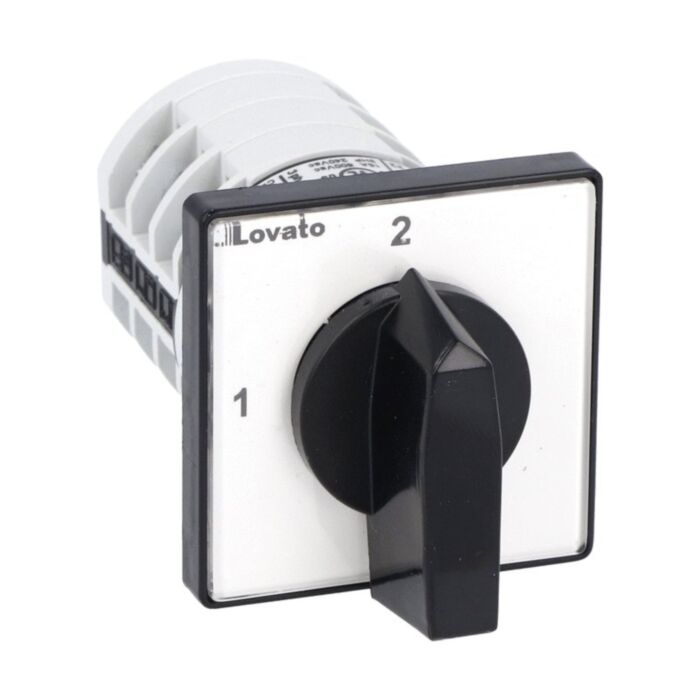

Lovato’s 7GN1256U changeover switch delivers dependable 3‑pole switching in a compact, panel‑friendly format. Part of the 7GN series with a round‑shaped contact block, this model follows switching diagram 56 (changeover without 0) and is rated Ith 16 A. Designed for U front mounting, it includes a black handle and a 48X48mm front plate to simplify installation and save space in control and automation panels.

Engineered for robustness, the 7GN1256U offers 6 kV rated impulse withstand voltage and IP40 frontal protection, operating reliably from -25 to +55 °C. It aligns with IEC/EN/BS 60947 and North American standards, supporting consistent performance and specification compliance. Ideal for source selection and circuit transfer, this rotary cam changeover switch enhances panel build quality while keeping operation clear and consistent for maintenance and commissioning tasks.

Key Benefits

• 3-pole changeover without 0 for reliable circuit transfer.
• 16 A Ith rating suits control and light power applications.
• U front mounting with black handle speeds clean panel installation.
• Compact 48X48mm front plate optimises limited fascia space.
• IP40 frontal protection appropriate for enclosed indoor panels.
• 6 kV impulse withstand voltage improves surge tolerance.
• Operates from -25 to +55 °C for dependable service.
• Conforms to IEC/EN/BS 60947 and North American standards.

Technical Specification

• Product type designation: 7GN12
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP40

What’s Included

• Lovato 7GN1256U changeover switch unit
• Integrated black handle with 48X48mm front plate
• Downloadable product datasheet

Applications

• Source selection between two circuits in control panels
• Transfer switching for redundant supplies in automation systems
• Motor or load direction control requiring 3-pole changeover
• Test and commissioning panels for circuit routing and isolation
• Machine and process panels needing compact rotary cam switching

Safety note: Install and operate only by qualified personnel. Isolate power before work, follow IEC/EN/BS 60947 guidance, and observe the IP40 frontal limitation.
