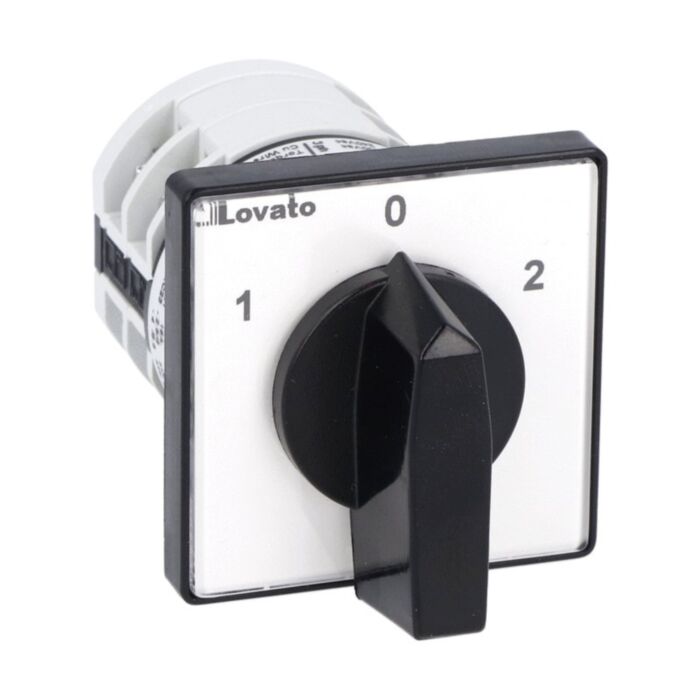

7GN1252U - 2P 3POS SWITCH GN1252U 48X48 FRONT MOUNT
MPN: 7GN1252U
Special Price
£20.72
£17.27
Regular Price
£34.54
Why Choose the 7GN1252U?
Lovato’s 7GN1252U rotary cam changeover switch delivers dependable 2-pole switching at 16 A for compact control panels. Designed for U-form front mounting, it features a black handle and a 48x48 mm front plate for tidy, accessible operation. Based on the 7GN round-shaped contact block series, it provides a clear, robust selector solution for panel builders and OEMs.
Engineered for everyday reliability, the device offers a 6 kV rated impulse withstand (Uimp) and IP40 frontal protection for use inside enclosures. It operates from -25 to +55 °C and stores from -40 to +70 °C, supporting varied installation conditions. Conformity to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL and CSA references, underpins panel compliance and documentation.
Key Benefits
- Two-pole changeover per diagram 52 for clear, reliable circuit transfer.
- 16 A Ith rating supports common control duties with confidence.
- U-form front mounting with black handle simplifies operator access.
- 48x48 mm front plate enables compact, neat panel layouts.
- 6 kV rated impulse withstand improves resistance to transients.
- IP40 frontal protection suits enclosed indoor panel environments.
- Operates from -25 to +55 °C for dependable performance.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1252U rotary cam changeover switch, 2-pole 16A
- 48x48 mm front plate with black handle
- Basic installation and safety information
- Product datasheet reference
Applications
- Industrial control panels requiring 2-pole changeover selection
- Equipment power source selection and circuit transfer
- OEM machinery and switchboard assemblies
- Test benches and service panels requiring reliable switching
- Building services control panels with front-operated selectors
Frequently Asked Questions
Is this a two-pole changeover switch?
Yes. It follows switching diagram 52, a changeover switch with 2 poles.
What is the current rating of the 7GN1252U?
It has an IEC conventional free air thermal current (Ith) of 16 A.
How is the device mounted and operated?
It is U-form front mounting with a black handle and a 48x48 mm front plate.
What environmental ratings does it have?
Operating temperature is -25 to +55 °C, storage is -40 to +70 °C, and the frontal IP rating is IP40.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before work and observe IP40, temperature limits, and applicable IEC/EN/BS, UL, and CSA standards.
| Manufacturer Part Number | 7GN1252U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003842 |
