7GN12511U - 3P SELECTOR SWITCH GN12511U 3POS FRONT M
MPN: 7GN12511U
Special Price
£275.17
£229.31
Regular Price
£458.62
Why Choose the 7GN12511U?

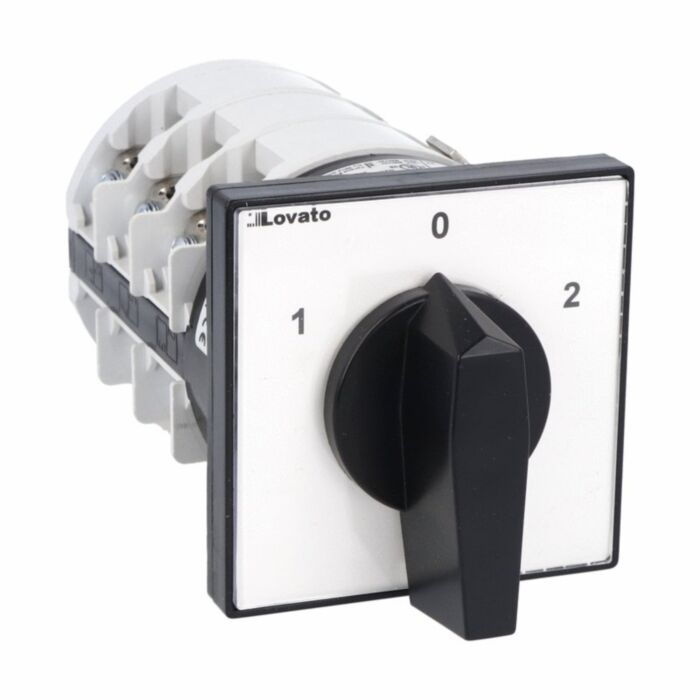

Built for heavy-duty control panels, the Lovato 7GN12511U Motor Starting Switch is a 3-phase motor reversing rotary cam switch rated at 125 A Ith. It features front mounting with a black handle and a 90 × 90 mm front plate for clear operator access. The 7GN round-shaped contact block design ensures a compact footprint while delivering reliable direction control in industrial motor applications.
Engineered for safety and compliance, this 7GN series device offers a 6 kV rated impulse withstand voltage and IP40 frontal protection. It operates reliably from −25 to +55 °C and stores at −40 to +70 °C. Conformity to IEC/EN/BS 60947-1/3/5-1, plus UL60947-4-1 and CSA C22.2 n° 14 references, supports use across regulated industrial environments and control assemblies.
Key Benefits
- 125 A Ith rating supports demanding 3-phase motor reversing duties.
- Front mounting with black handle simplifies panel installation and operation.
- 90 × 90 mm front plate provides clear, accessible operator interface.
- 6 kV impulse withstand enhances dielectric resilience.
- IP40 frontal protection suitable for indoor control cabinets.
- Operates from −25 to +55 °C for dependable performance.
- Conforms to IEC/EN/BS, UL and CSA standards for broad compliance.
Technical Specification
- Product type designation: 7GN125
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN12511U rotary cam switch assembly
- Black operator handle and 90 x 90 mm front plate
- Panel mounting fixings
- Manufacturer documentation
Applications
- Reversing control of three-phase motors
- Industrial control panels and switchboards
- Machinery direction selection and commissioning
- Motor control stations in manufacturing environments
- OEM equipment and panel builder projects
Frequently Asked Questions
What is the switching function of the 7GN12511U?
It uses switching diagram 11, a 3-phase motor reversing switch for direction control.
What current rating does it support?
The IEC conventional free air thermal current (Ith) is 125 A.
How is the device mounted and operated?
It is a front-mounting unit (form U) with a black handle and a 90 × 90 mm front plate.
What environmental and protection ratings apply?
The frontal degree of protection is IP40. Operating temperature is −25 to +55 °C, with storage from −40 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/3/5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Installation and operation must be performed by qualified personnel with power isolated; use within the specified ratings and environmental limits, and mount behind suitable enclosures as IP40 is frontal only.
| Manufacturer Part Number | 7GN12511U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144005778 |
