7GN12510U65 - 3P 2POS SWITCH GN12510U65 PAD- LOCKABLE
MPN: 7GN12510U65
Special Price
£213.62
£178.02
Regular Price
£356.03
Why Choose the 7GN12510U65?

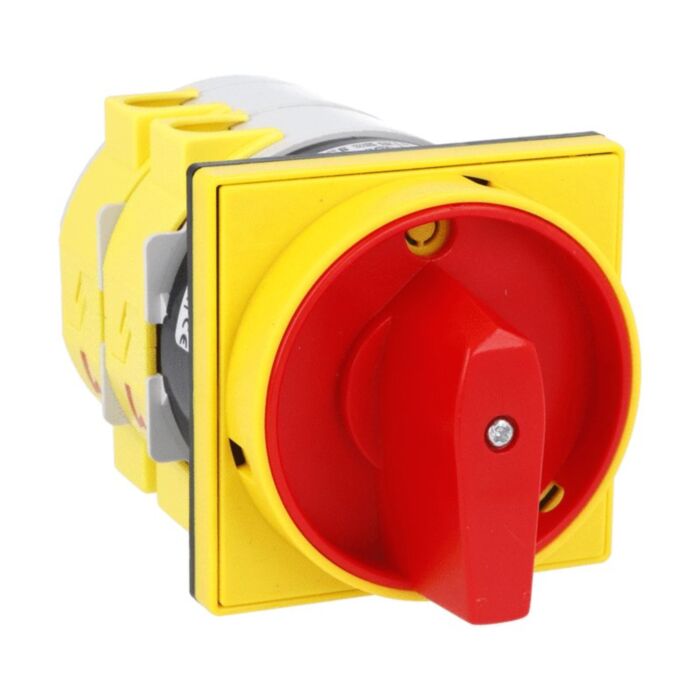

Lovato’s 7GN rotary cam ON/OFF switch delivers dependable 3-pole isolation at 125A, ideal for panel builders and OEMs. SKU 7GN12510U65 features U65 front mounting with a red/yellow handle padlockable in 0, plus protection covers for added safety. The assembly includes a 90x90 mm front plate and the robust 7GN round-shaped contact block design, providing compact, clear operator control for reliable switching in industrial control panels and machinery.
Engineered to IEC/EN/BS 60947 standards, this ON/OFF switch offers 6 kV rated impulse withstand (Uimp) and IP40 frontal protection. It operates from -25 to +55 °C and stores to -40 to +70 °C. As part of the Lovato 7GN series, it combines reliability with straightforward front-of-panel installation, making it a practical choice for safe isolation and clear operator control across control panels, switchboards and general industrial equipment.
Key Benefits
- 3-pole, 125A Ith switching for robust power isolation.
- U65 front mounting simplifies panel integration and operator access.
- Red/yellow handle padlockable in 0 enhances lockout safety.
- IP40 frontal protection for reliable front-of-panel operation.
- Rated impulse withstand 6 kV improves transient resilience.
- Wide operating temperature range -25 to +55 °C.
- Supplied with 90x90 mm front plate and protection covers.
- Built on the 7GN round-shaped contact block design.
Technical Specification
- Product type designation: 7GN125
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Rotary cam ON/OFF switch assembly (3 poles, 125A Ith)
- Red/yellow padlockable handle (locks in 0 position)
- 90x90 mm front plate
- Protection covers
- Basic installation leaflet
Applications
- Main ON/OFF isolation in control panels and switchboards
- Machinery control where padlocking in 0 is required
- Power distribution circuits requiring 3-pole, 125A switching
- Commercial and industrial plant rooms for clear operator control
Frequently Asked Questions
Is the handle lockable for safety?
Yes. The U65 version provides a red/yellow handle padlockable in the 0 position.
What current rating does this switch support?
It has an IEC conventional free air thermal current (Ith) of 125 A.
What is the front protection rating?
The frontal degree of protection is IP40.
Does it come with a front plate for mounting?
Yes. It is designed for front mounting and includes a 90x90 mm front plate.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate all power before work, observe applicable IEC/EN/BS 60947 and local regulations, and note IP40 applies to the frontal face only.
| Manufacturer Part Number | 7GN12510U65 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144005723 |
