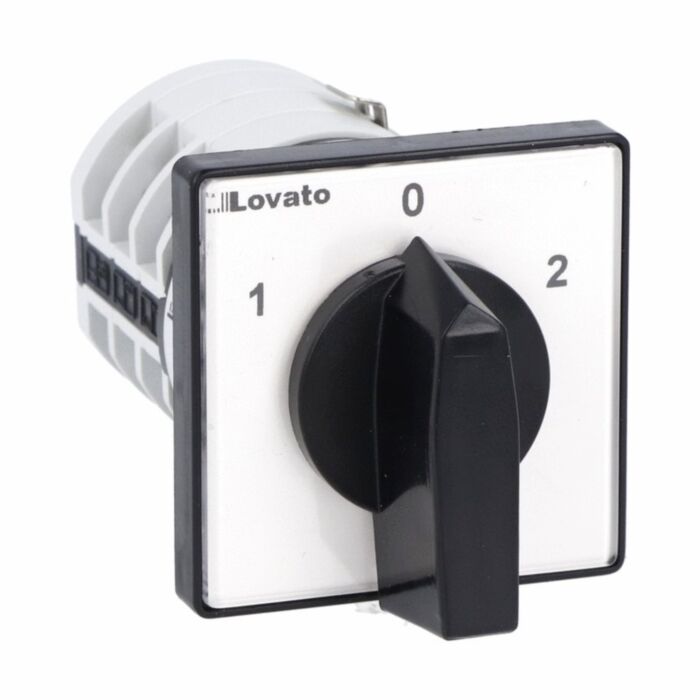

7GN1211U - 3P 3POS SWITCH GN1211U 48x48 FRONT MOUNT
MPN: 7GN1211U
Special Price
£23.72
£19.77
Regular Price
£39.55
Why Choose the 7GN1211U?
Designed for reliable motor direction control, the Lovato 7GN1211U motor starting switch is a rotary cam switch with switching diagram 11 for 3-phase motor reversing. Rated at 16 A (Ith) and built on the 7GN round-shaped contact block series, it suits compact panels with a 48 x 48 mm front plate. The U front mounting with black handle ensures straightforward installation and confident, positive actuation.
Engineered to perform in demanding environments, it offers a 6 kV impulse withstand (Uimp), IP40 frontal protection and an operating range from -25 to +55 °C. The 7GN12 product designation confirms compatibility within the 7GN family. Conformity to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, supports global panel standards and sustainability objectives.
Key Benefits
- 3-phase motor reversing via switching diagram 11 rotary cam design.
- 16 A Ith rating supports small to medium motor control.
- Front mounting with black handle enables quick panel installation.
- Compact 48 x 48 mm front plate saves fascia space.
- IP40 frontal protection for indoor industrial control panels.
- 6 kV impulse withstand enhances electrical durability.
- Operates from -25 to +55 °C for varied environments.
- Compliant with IEC/EN/BS 60947 standards and UL/CSA listings.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1211U rotary cam motor starting switch (assembled)
- 48 x 48 mm front plate with black handle
- Basic installation instructions
Applications
- Reversing control of three-phase motors on machinery
- Conveyor direction switching and material handling systems
- Pumps, fans and hoists requiring forward/reverse selection
- OEM and panel-builder motor control stations
Frequently Asked Questions
What function does the 7GN1211U provide?
It is a rotary cam switch with diagram 11 for 3-phase motor reversing.
What is the current rating?
The IEC conventional free air thermal current (Ith) is 16 A.
How is it mounted and what is the plate size?
It uses U front mounting with a black handle and a 48 x 48 mm front plate.
What protection and environmental ratings apply?
It has IP40 frontal protection, operates from -25 to +55 °C, and Uimp is 6 kV.
Which standards does it conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before work and use the device within the specified ratings and standards.
| Manufacturer Part Number | 7GN1211U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002791 |
