7GN1210U25 - 3P 2POS SWITCH GN1210U25 FRONT MOUNTING
MPN: 7GN1210U25
Special Price
£22.78
£18.98
Regular Price
£37.97
Why Choose the 7GN1210U25?

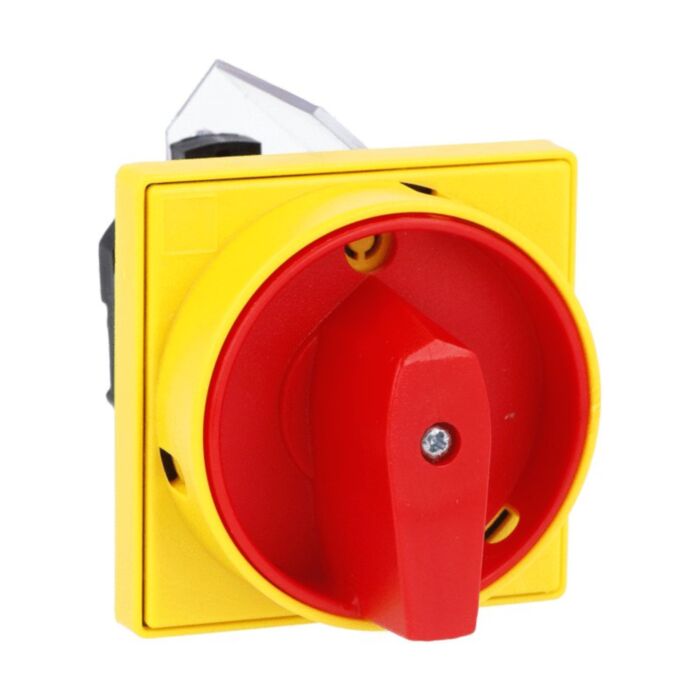

Lovato’s 7GN1210U25 rotary cam ON/OFF switch delivers reliable 3-pole switching with a 16 A Ith rating. Designed for front mounting, it features the U25 red/yellow handle padlockable in the 0 position, supplied with protection covers and a 65 x 65 mm front plate. The 7GN series round-shaped contact block and IP40 frontal protection make it a robust, panel-friendly choice for clear, safe ON/OFF control.
Built to recognised standards, the 7GN1210U25 conforms to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14. It withstands transients with a 6 kV Uimp and operates from -25 to +55 °C (storage -40 to +70 °C). These specifications, together with the compact 65 x 65 mm plate, help ensure dependable performance and straightforward integration in control panels.
Key Benefits
- 3-pole ON/OFF switching for dependable control.
- 16 A Ith rating for reliable performance.
- U25 front mounting with red/yellow handle.
- Padlockable in 0 position to support safe lock-off.
- IP40 frontal protection enhances ingress resistance.
- Compact 65 x 65 mm plate optimises panel space.
- 6 kV impulse withstand resists transient surges.
- Operates -25 to +55 °C for varied environments.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN rotary cam ON/OFF switch, 3-pole, 16 A
- Red/yellow handle, padlockable in 0
- 65 x 65 mm front plate
- Protection covers
- Installation instructions
Applications
- Panel-mounted ON/OFF control for industrial machinery
- Maintenance lock-off at the 0 position on control panels
- Power switching of three-pole circuits with 16 A Ith
- General-purpose ON/OFF function in automation and process panels
Frequently Asked Questions
What is the current rating of this switch?
It has an IEC conventional free air thermal current Ith of 16 A.
Is the handle padlockable for safety?
Yes—this U25 version includes a red/yellow handle padlockable in the 0 position and protection covers.
What are the environmental ratings?
Frontal protection is IP40 and operating temperature is -25 to +55 °C (storage -40 to +70 °C).
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1 and CSA C22.2 n° 14.
What are the plate size and switching configuration?
It has a 65 x 65 mm front plate and a 10 switching diagram (ON/OFF switch 3 poles). The rated impulse withstand voltage Uimp is 6 kV.
Safety note: Install and commission only by qualified personnel. Isolate the supply and lock the handle in the 0 position before any work, and follow IEC/EN/BS 60947 and local regulations.
| Manufacturer Part Number | 7GN1210U25 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002326 |
