7GN1210U11 - 3P 2POS SWITCH GN1210U11 FRONT MOUNTING
MPN: 7GN1210U11
Special Price
£25.76
£21.47
Regular Price
£42.95
Why Choose the 7GN1210U11?

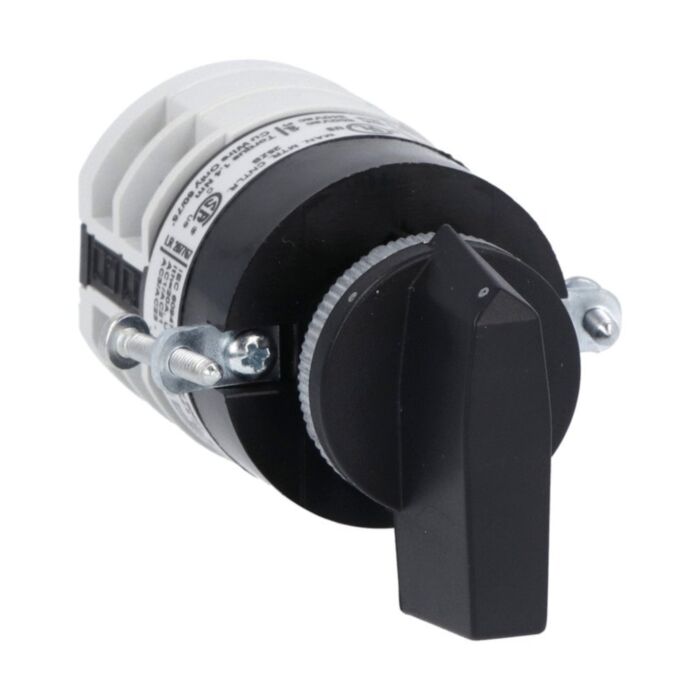

The Lovato 7GN1210U11 is a rotary cam ON/OFF switch engineered for reliable three‑pole isolation at 16 A Ith. Designed for front mounting in a Ø22 mm panel cut-out, it features an integrated black handle and IP40 frontal protection. This compact 7GN round-shaped contact block variant suits straightforward ON/OFF duties in control panels and equipment.
With switching diagram 10 for a 3-pole ON/OFF function, the 7GN12 designation delivers dependable performance across -25 to +55 °C, and withstands 6 kV impulse. Conforming to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 n° 14, this front-fixing U11 model streamlines installation while maintaining durability for everyday isolation tasks.
Key Benefits
- 3-pole ON/OFF switching per diagram 10 for clear isolation.
- 16 A Ith rating supports common control and power duties.
- Front mounting in Ø22 mm hole simplifies panel integration.
- Integrated black handle for intuitive operation and visibility.
- IP40 frontal protection suitable for protected indoor enclosures.
- Operating range from -25 to +55 °C supports varied environments.
- Conforms to IEC/EN/BS, UL and CSA standards for compliance.
- Compact 7GN round-shaped contact block conserves valuable panel space.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1210U11 rotary cam ON/OFF switch assembly
- Integrated black handle (front mounting, no front plate)
- Manufacturer datasheet (download via product page)
Applications
- Main ON/OFF control in industrial panels and enclosures
- Equipment power isolation for maintenance and safety procedures
- Switching of three-phase loads within rated thermal current
- General-purpose machinery start/stop control circuits
Frequently Asked Questions
What panel cut-out is required for mounting?
A Ø22 mm hole is required for front mounting.
What is the switching function and number of poles?
It follows diagram 10 and provides a 3-pole ON/OFF switching function.
What is the current rating of this switch?
It has an IEC conventional free air thermal current Ith of 16 A.
Does this model include a front plate?
No. It is supplied for front mounting with an integrated black handle, without a front plate.
Which standards does the 7GN1210U11 conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Install and operate only by qualified personnel. Isolate power before wiring, use within specified ratings, and fit inside a suitably protected enclosure per the datasheet and applicable standards.
| Manufacturer Part Number | 7GN1210U11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144003996 |
