7GN1210U - 3P 2POS SWITCH GN1210U 48X48 FRONT MOUNT
MPN: 7GN1210U
Special Price
£18.55
£15.46
Regular Price
£30.92
Why Choose the 7GN1210U?

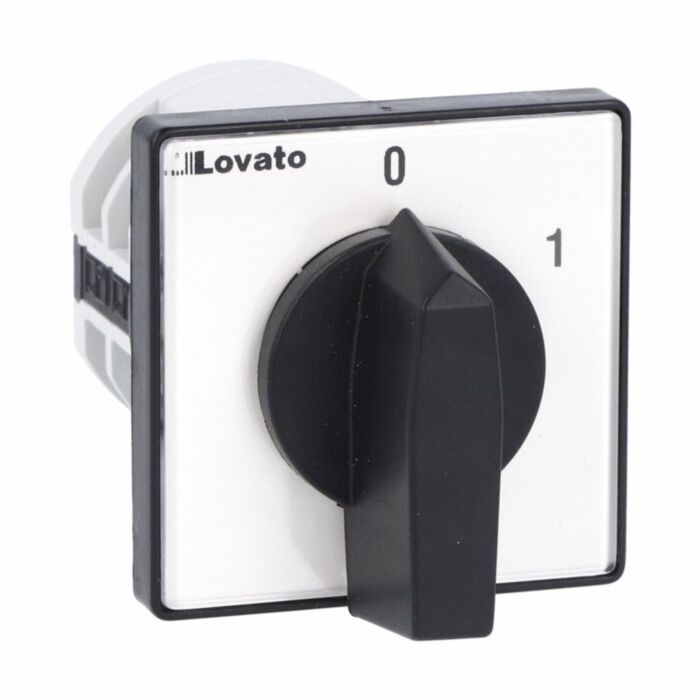

Lovato’s 7GN1210U rotary cam ON/OFF switch is a 3-pole, 16 A solution designed for reliable panel control. For front mounting with a black handle and a 48x48 mm front plate, it integrates seamlessly into compact layouts. Part of the 7GN series with a round-shaped contact block, it uses switching diagram 10 for straightforward ON/OFF functionality, delivering robust performance for equipment isolation and operator control.
Engineered for dependable service, the 7GN1210U offers a rated impulse withstand voltage of 6 kV and IP40 frontal protection. It operates from -25 to +55 °C and stores safely between -40 and +70 °C. With product type designation 7GN12 and conformity to IEC/EN/BS 60947 standards (plus UL and CSA), it supports confident specification for UK panel builds and maintenance programmes.
Key Benefits
- 3-pole ON/OFF switching to diagram 10 for clear circuit control.
- 16 A Ith rating for dependable handling of typical loads.
- Front mounting with black handle simplifies operator interface.
- Compact 48x48 mm front plate conserves valuable panel space.
- IP40 frontal protection for use in protected enclosures.
- 6 kV Uimp withstand enhances electrical robustness.
- Wide -25 to +55 °C operating temperature range.
- Conforms to IEC/EN/BS 60947 series for compliance.
Technical Specification
- Product type designation: 7GN12
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP40
What’s Included
- Lovato 7GN1210U rotary cam ON/OFF switch
- Pre-fitted black handle for front mounting
- 48x48 mm front plate
- Manufacturer product datasheet (digital)
Applications
- General ON/OFF control of 3-pole circuits
- Front-mounted panel switching and isolation
- Equipment requiring a compact 48x48 mm operator interface
- Installations needing IP40 frontal protection within enclosures
Frequently Asked Questions
What is the current rating of the 7GN1210U?
It has an IEC conventional free air thermal current Ith of 16 A.
Is it suitable for front mounting and does it include a handle?
Yes. Mounting form U indicates front mounting with a black handle.
What are the operating and storage temperature ranges?
Operating temperature is -25 to +55 °C; storage is -40 to +70 °C.
What is the frontal IP rating of this switch?
The frontal degree of protection is IP40.
Which standards does the 7GN1210U conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Always isolate and verify the circuit is de-energised before mounting, wiring, or operating the switch, and observe all applicable standards.
| Manufacturer Part Number | 7GN1210U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 3850144002319 |
