7GN1210O88 - 3P 2POS SWITCH GN1210O88 REAR MNTG DOOR

Why Choose the 7GN1210O88?

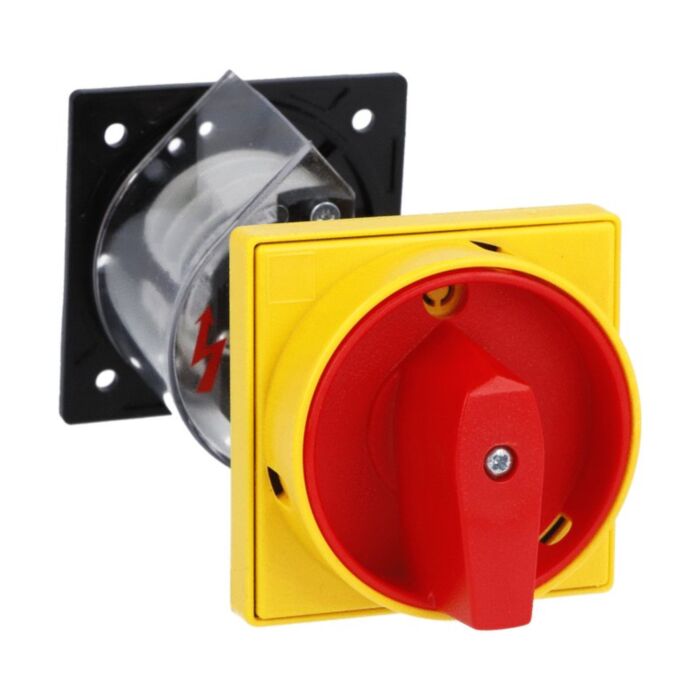

Lovato’s 7GN1210O88 rotary cam switch from the 7GN series delivers dependable three-pole ON/OFF control for panels and machines. This ON/OFF switch (switching diagram 10) is rated Ith 16 A and features O88 rear mounting with door coupling. A red/yellow handle padlockable in 0, plus protection covers and a 65X65mm front plate, ensure tidy, secure operation.

Engineered for industrial environments, the 7GN12 designation provides 6 kV rated impulse withstand and IP40 frontal protection when installed. It operates from -25 to +55 °C and stores between -40 and +70 °C, aligning with common cabinet conditions. Designed in accordance with IEC/EN/BS 60947 parts 1, 3 and 5-1, plus UL and CSA references, it suits reliable ON/OFF switching duties.

Key Benefits

• 3-pole ON/OFF switching (diagram 10) for clear, reliable circuit control.
• 16 A Ith supports robust general-purpose switching performance.
• O88 rear mounting with door coupling streamlines panel integration.
• Red/yellow handle padlockable in 0 aids safe lockout procedures.
• 65X65mm front plate delivers a compact, neat operator footprint.
• IP40 frontal protection suitable for protected indoor enclosures.
• 6 kV impulse withstand enhances resilience to transient overvoltages.
• Wide operating range from -25 to +55 °C.

Technical Specification

• Product type designation: 7GN12
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP40

What’s Included

• Rotary cam switch assembly
• Red/yellow handle (padlockable in 0)
• Front plate 65X65mm
• Door coupling
• Protection covers

Applications

• Panel-mounted ON/OFF control for three-pole circuits
• Machine and equipment door operators with rear coupling
• Padlockable 0-position for maintenance and service safety procedures
• Installations where IP40 frontal protection is acceptable

Safety note: Installation and operation should be performed by qualified personnel. Isolate all power before work, and use the switch within its stated ratings and enclosure protection limits.
