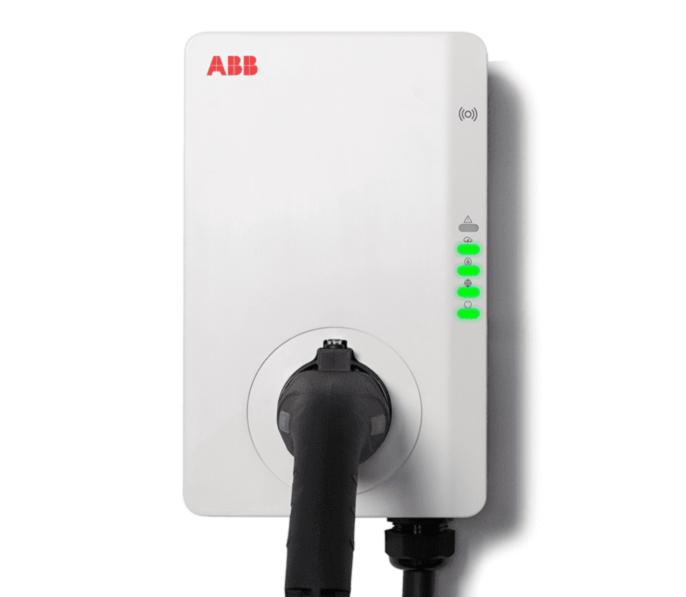

6AGC081281 ABB Wall Mounted Car Charger Three Phase 32 Amp Display/RFID/4G
MPN: 6AGC081281
Alt. SKU: TAC-W22-T-RD-MC-0
Why Choose the Terra AC W22-T-RD-MC-0 [6AGC081281]
TAC-W22-T-RD-MC-0 AC wallbox type 2, socket, 3-phase/32A, MID certified, with RFID, display and 4G
Technical Specification
- Function: AC wallbox Type 2 socket for EV charging, 3-phase, MID certified.
- Voltage and Current Ratings: Nominal 22 kW output power, 3-phase 32 A input current.
- Connection Configuration: TT and TN systems compatible.
- Protection: Overcurrent protection at 40 A, integrated miniature circuit breaker, residual current monitor (RCD) with DC detection.
- Enclosure Rating: Suitable for indoor and outdoor installation, Impact Resistance IK08.
- Terminal Size Range: 6 mm² conductors supported.
- Communication Interfaces: Wi-Fi, Ethernet, Bluetooth, Modbus, 4G (LTE) with OCPP 1.6 protocol support.
- Display and Controls: Integrated display with operation/configuration via app and RFID authentication.
- Surge and Safety Features: Surge suppression included, contactor welding detection.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the output power of the TAC-W22-T-RD-MC-0?
The TAC-W22-T-RD-MC-0 has a nominal output power of 22 kW.
What type of socket does this wallbox use?
This wallbox uses a Type 2 socket for EV charging.
What is the maximum input current for this device?
The maximum input current is 32 A.
Is the TAC-W22-T-RD-MC-0 suitable for outdoor installation?
Yes, it is suitable for both indoor and outdoor installation.
What communication interfaces are supported?
The device supports Wi-Fi, Ethernet, Bluetooth, Modbus, and 4G (LTE) with OCPP 1.6 protocol.
What is the terminal size range for cable connections?
The wallbox supports conductors with a size range of 6 mm².
What safety features are included in this wallbox?
It includes overcurrent protection, an integrated miniature circuit breaker, and a residual current monitor (RCD) with DC detection.
| Manufacturer Part Number | 6AGC081281 |
|---|---|
| Alternative Product SKU | TAC-W22-T-RD-MC-0 |
| Barcode | 8719874450980 |
| Manufacturer | ABB |
| Packed Quantity | 1 |
| Amperage | 32A |
