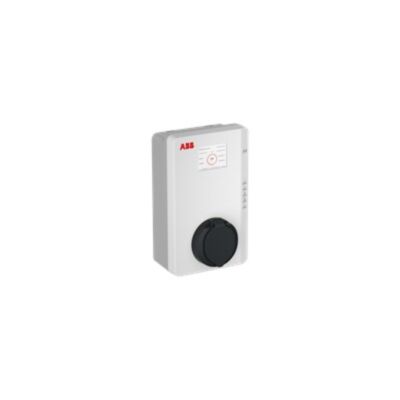

6AGC081280 ABB Wall Mounted Car Charger Three Phase 32 Amp with Display
MPN: 6AGC081280
Alt. SKU: TAC-W22-T-RD-M-0
Why Choose the Terra AC W22-T-RD-M-0 [6AGC081280]
Terra AC wallbox type 2, socket, 3-phase/32 A, MID certified, with RFID and display
Technical Specification
- Function: Terra AC wallbox type 2 socket for electric vehicle charging.
- Voltage & Current Ratings: 3-phase, 32 A input current, 22 kW nominal power.
- Contact Configuration: Single AC Type 2 socket outlet, integrated miniature circuit breaker.
- Protection Features: Overcurrent protection at 40 A, DC residual current and contactor welding detection.
- Insulation & Surge Protection: Includes surge suppression.
- Enclosure Rating: Suitable for indoor and outdoor use, impact resistance IK08.
- Terminal Type & Size Range: Cross-section 6 mm² conductors.
- Communication & Protocols: Wi-Fi, Ethernet, Bluetooth, Modbus, OCPP 1.6 load management.
- Authentication: RFID and app-based with free vending option.
- Display & Operation: Integrated display with app operation and backend included.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum charging capacity of the Terra AC wallbox?
The Terra AC wallbox has a nominal power of 22 kW and supports a 3-phase, 32 A input current.
Is the Terra AC wallbox suitable for outdoor installation?
Yes, the enclosure is rated for both indoor and outdoor use.
What type of socket does the Terra AC wallbox use?
It features a single AC Type 2 socket outlet.
What protection features are included in the Terra AC wallbox?
It includes overcurrent protection at 40 A, DC residual current detection, and contactor welding detection.
What communication protocols does the Terra AC wallbox support?
It supports Wi-Fi, Ethernet, Bluetooth, Modbus, and OCPP 1.6 for load management.
What is the maximum cable size that can be used with the Terra AC wallbox?
The terminal size range accommodates conductors with a cross-section of up to 6 mm².
Does the Terra AC wallbox have any authentication features?
Yes, it features RFID and app-based authentication with a free vending option.
| Manufacturer Part Number | 6AGC081280 |
|---|---|
| Alternative Product SKU | TAC-W22-T-RD-M-0 |
| Barcode | 8719874450973 |
| Manufacturer | ABB |
| Packed Quantity | 1 |
| Amperage | 32A |
