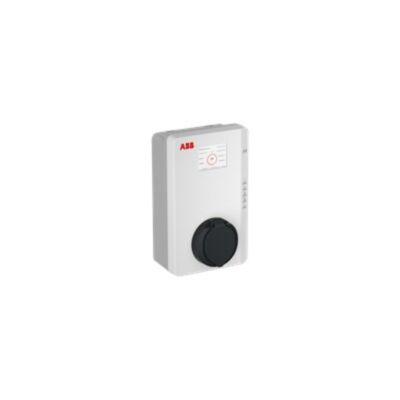

6AGC081278 ABB Wall Mounted Car Charger Single Phase 32 Amp

Name: 6AGC081278 ABB Wall Mounted Car Charger Single Phase 32 Amp
Brand: ABB
SKU: 6AGC081278
Price: 527 GBP
Availability: InStock

MPN: 6AGC081278

Alt. SKU: TAC-W7-T-0

Why Choose the Terra AC W7-T-0 [6AGC081278]

Terra AC wallbox type 2, socket, 1-phase/32 A

Type: Terra AC wallbox Type 2 socket, 1-phase.
Nominal Voltage and Current: 1-phase, 32 A input current, 7 kW output power.
Protection: Overcurrent protection at 40 A; integrated Residual Current Device (RCD).
Connection Configuration: TT and TN earthing systems supported.
Enclosure: Suitable for indoor and outdoor installation, impact resistance rating IK08.
Terminal Capacity: Cable cross-section 6 mm².
Communication: Wi-Fi, Ethernet, Bluetooth, Modbus, LTE; OCPP 1.6 protocol for load management.
App Control: Operation and configuration via app with backend support included.
Mechanical Features: No display, no cable outlet; compact weight 2.7 kg.

"Specified by UK panel builders for dependable control." Controls Engineer, UK

What is the output power of the Terra AC wallbox?

The Terra AC wallbox has an output power of 7 kW.

What is the maximum input current for this wallbox?

The maximum input current is 32 A.

Can the Terra AC wallbox be used outdoors?

Yes, it is suitable for both indoor and outdoor installation.

What type of earthing systems does the wallbox support?

It supports TT and TN earthing systems.

What is the terminal capacity for cable connections?

The terminal capacity allows for a cable cross-section of 6 mm².

Does the wallbox have any protection features?

Yes, it includes overcurrent protection at 40 A and an integrated Residual Current Device (RCD).

What communication protocols does the Terra AC wallbox support?

It supports Wi-Fi, Ethernet, Bluetooth, Modbus, LTE, and OCPP 1.6 for load management.
