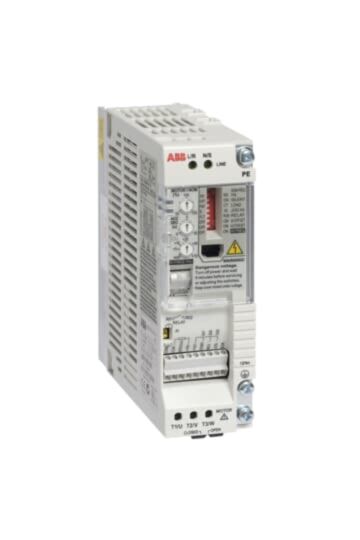

ACS55-01N-07A6-2 ABB 1.5kW Three Phase ABB ACS55 Variable Speed Drive
MPN: ACS55-01N-07A6-2
Alt. SKU: 68878446
Why Choose the Frequency converter [68878446]
The ACS55 micro drives can control a variety of simple applications such as automatic gate, solar trackers, fans, conveyors, treadmills and whirlpool baths in both commercial and domestic environments. It fits perfectly even in small spaces and guarantee reliable operation for your machines. It can be also integrated easily into existing panels, replacing contactors and motor starters. Its interface with DIP switches and trimmers is exceptionally intuitive and configuring drives in volume is easy with an optional DriveConfig kit.
Technical Specification
- Function: Frequency converter for controlling motors in various applications.
- Applications: Suitable for automatic gates, solar trackers, fans, conveyors, treadmills, and whirlpool baths.
- Voltage Rating: Compatible with standard industrial voltage supplies (specific voltage range to be confirmed from datasheet).
- Current Rating: Designed for low to moderate current loads typical in commercial and domestic environments.
- Control Interface: Intuitive DIP switches and trimmers for easy configuration; supports DriveConfig kit for volume programming.
- Integration: Easily retrofits into existing control panels, replacing contactors and motor starters.
- Protection Rating: Suitable for use in environments requiring reliable operation; IP rating to be confirmed.
- Terminal Type: Standard industrial terminals accommodating typical wire sizes for secure connections.
- Mechanical Size: Compact design suitable for installation in small spaces.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What applications can the ACS55 micro drives control?
The ACS55 micro drives can control automatic gates, solar trackers, fans, conveyors, treadmills, and whirlpool baths in both commercial and domestic environments.
Is the ACS55 suitable for small spaces?
Yes, the ACS55 features a compact design that fits perfectly in small spaces.
How does the ACS55 integrate with existing control panels?
The ACS55 can easily retrofit into existing control panels, replacing contactors and motor starters.
What type of control interface does the ACS55 use?
The ACS55 uses an intuitive control interface with DIP switches and trimmers, and supports the optional DriveConfig kit for volume programming.
What is the voltage rating for the ACS55 micro drives?
The ACS55 is compatible with standard industrial voltage supplies; specific voltage ranges should be confirmed from the manufacturer's data sheet.
What is the protection rating of the ACS55?
The protection rating is suitable for reliable operation in various environments; the specific IP rating should be confirmed from the manufacturer's data sheet.
What terminal types does the ACS55 support?
The ACS55 features standard industrial terminals that accommodate typical wire sizes for secure connections.
| Manufacturer Part Number | ACS55-01N-07A6-2 |
|---|---|
| Barcode | 6410038784423 |
| Packed Quantity | 1 |
| Height | 171mm |
| Width | 159mm |
| Depth | 70mm |
| Amperage | 7.6A |
| Analog Input | 1 |
| Digital Inputs | 3 |
| Digital Outputs | 1 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 1.5kW |
| Number of HW-interfaces other | 1 |
| Output Frequency | 250Hz |
| Output Voltage | 240VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 200/240VAC |
| VSD Range | ABB ACS55 |
| With PC connection | Yes |
| Manufacturer | ABB |
| Alternative Product SKU | 68878446 |
